LEV 49F64-O SIN POLE FEM RHINO PLUG

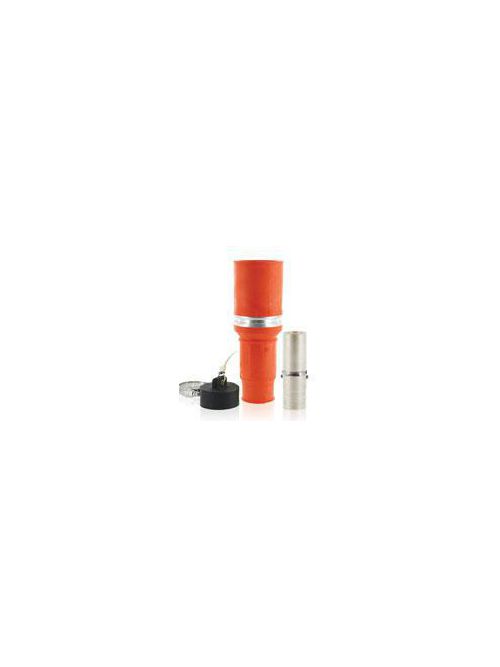

Product image thumbnail 0
Product image thumbnail 1
$617.67/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 49F64-O
North Coast Part # 488683

Specifications

Material Specifications

  • Connector Insulator: Santoprene TPV
  • Female Contact: Silver-Plated High Conductivity Alloy
  • Connector Retention Ring: Anodized Aluminum
  • Dust Cap: Santoprene TPV
  • Cable Clamp: Stainless Steel

Standards and Certifications

  • UL: Listed
  • NEMA Rating: Type 3R

Electrical Specifications

  • Max. Amperage: 1009
  • Max. Voltage: 1000 Volt

Product Features

  • Color: Orange
  • Country Of Origin: Please Contact Customer Service.

Overview

UPC 07847728131
GTiN 00078477281314
Size 1.50 Dia. x 4.75 L IN
Color Orange
Voltage 1000 Volt
Type Female Connector,Single Pole Device
Material TPV
Applications Commercial
Mounting Type Cable
Wire Size 646 kcmil
Standard CULus Listed
Connection Type Crimp/Solder
Temperature Rating -60 To 135 C
Family Brand Name Leviton
NEMA 3R
Number of Phases 1 Phase
TC Connection Crimp/Solder
Amperage 1009 Amp
Environmental Conditions NEMA Type 3R
Number of Poles 1 Pole
Max Voltage 1000 V
Number of Wires 1
Sub Brand Rhino-Hide
