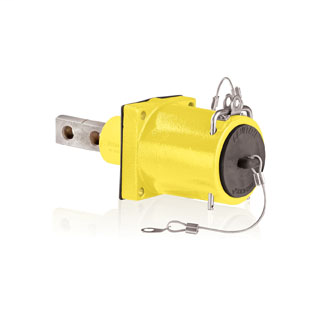

LEV 49FR2-CY SIN POLE FEM RHINO REC
$1,078.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 49FR2-CY
North Coast Part # 543351

Specifications

Material Specifications

  • Housing Gasket: Rubber
  • Bus Bar Contact: Silver-Plated High Conductivity Alloy
  • Receptacle Housing: Powder-Coated Cast Aluminum
  • Dust Cap: Santoprene TPV
  • Padlock Bracket: Stainless Steel
  • Clevis Pin: Stainless Steel
  • Bus Bar Insulator: Santoprene TPV

Mechanical Specifications

  • Gender: Female

Standards and Certifications

  • UL: Listed
  • NEMA Rating: Type 3R

Electrical Specifications

  • Connector Termination: Bus Bar-Double Hole
  • Max. Amperage: 1135 Amp
  • Max. Voltage: 1000 Volt

Product Features

  • Color: Yellow
  • Country Of Origin: Please Contact Customer Service.

Categories

Overview

UPC 07847734405
GTiN 00078477344057
Size 3.91 Dia. x 4.98 L IN
Color Yellow
Voltage 1000 Volt
Type Double Hole Bus Bar,Female Receptacle
Material Powder-Coated Cast Aluminum
Applications Commercial
Mounting Type Panel
Wire Size 313-777 kcmil
Standard CULus Listed
Connection Type Bus Bar
Temperature Rating -60 To 135 C
Family Brand Name Leviton
Gender Female
Receptacle Type Powder-Coated Cast Aluminum
NEMA 3R
Number of Phases 1 Phase
TC Connection Bus Bar
Amperage 1135 Amp
Max Current 1135 A
Environmental Conditions NEMA Type 3R
Number of Poles 1 Pole
Max Voltage 1000 V
Number of Wires 1
Sub Brand Rhino-Hide
