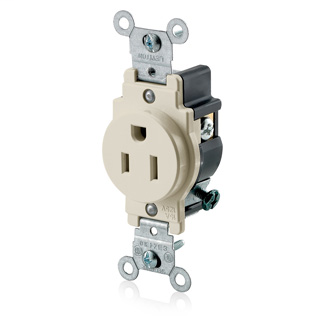

LEV 5088-T GRD SINGLE RECEPT
$14.12/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5088-T
North Coast Part # 1342266

Specifications

Material Specifications

  • Line Contacts: Brass Triple-Wipe .031 Thick
  • Face Material: Nylon
  • Color: Light Almond
  • Strap Material: Zinc-Plated Steel
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Nylon
  • Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-2 WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 5-15R
  • Feature 4: Indented Face
  • Color: Light Almond
  • Country Of Origin: Mexico
  • Grade: Commercial Specification Grade
  • Device Type: Single Receptacle Outlet

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847767985
GTiN 00078477679852
Warranty Length 10 yr
Color Light Almond
Operating Temperature -40 C
Voltage 125 Volt
Type Single Receptacle
Applications Commercial
Grade Commercial Specification
Country of Origin Mexico
Standard ANSI C-73
Horsepower 1/2 hp
Face Material Nylon
Body Material Nylon
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-2,WD-6
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Single Receptacle Outlet
