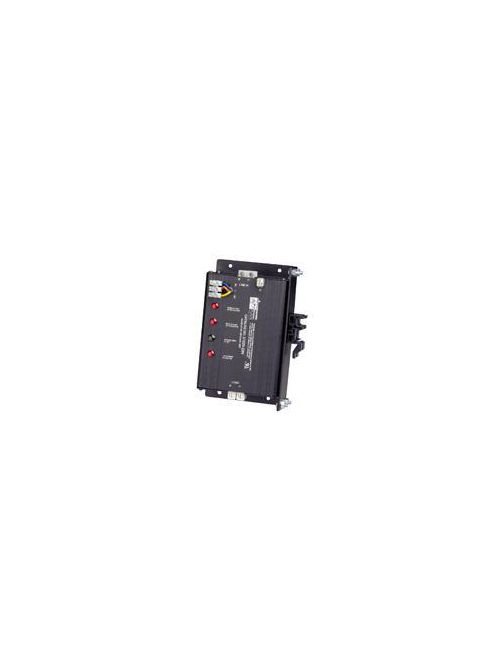

LEV 51240-WM TVSS 10AMP MODULE
Product image thumbnail 0
Product image thumbnail 1
$276.54/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 51240-WM
North Coast Part # 64717

Specifications

Material Specifications

  • Enclosure Material: Extruded Aluminum

Warranty

  • Warranty: 10-Year Limited

Product Features

  • Noise Rejection: 40 to 50 dB at 5kHz-100MHz
  • Mounting Type: Surface
  • Max Surge Current kA L-N/L-G/Phase: 52kA/ /
  • Country Of Origin: Mexico
  • UL1449 Impulse 6kV/500A L-N/L-G/N-G/L-L: 600/330/600/
  • Voltage: 240 VAC
  • Diagnostics: LED & Audible
  • MCOV: 270V AC

Standards and Certifications

  • Agency Certifications: cULus 1449 3rd Edition Listed Type 3
  • ANSI/IEEE Category A & B: C-62.41 & C-62.45

Performance Data

  • Joules Rating: 2600
  • Noise Filtering: -20dB to -40dB (@50K-100MHz)
  • VPR: L-L:700V, L-G:800V
  • Protection Mode: 3 Mode
  • Maximum Surge Current, Per Mode (Per Phase): 60kA (L-N:40kA, L-G:20kA)

Mechanical Specifications

  • Diagnostics: LED & Audible
  • Remote Monitoring: Rated 0.46 A, 150VAC or 1A, 30Vdc Dry Contact
  • Connection Type: Hardwired, Accommodate 8 to 12 AWG Wire

Electrical Specifications

  • Amperage: 16 A
  • Surge Technology: MOV
  • Frequency: 50/60Hz
  • Voltage: 240 VAC

Environmental Specifications

  • Operating Temperature: -10°C to 60°C
  • Storage Temperature: -20°C to 85°C
  • Relative Humidity: 5% to 95% non-condensing

Overview

UPC 07847713687
GTiN 00078477136874
Warranty Length 10 yr
Operating Temperature -10 C
Voltage 240 Volt
Type Type 4 SPD
Material Aluminum
Applications Commercial
Mounting Type Surface
Country of Origin Mexico
Standard ANSI\IEEE (Category C-62.41, C-62.45),CURus (1449)
Frequency 50/60 Hz
Connection Type Hardwired
Family Brand Name Leviton
TC Connection Hardwired
Amperage 16 Amp
Environmental Conditions Humidity (5 To 95% Non-Condensing),Storage Temperature (-20 To 85 DEG C)
Indicator Alarm,Indicator Light
Storage Temperature -20 To 85 C
