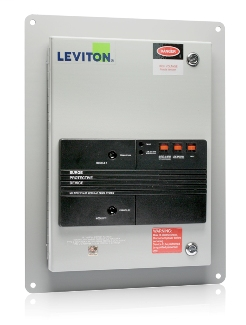

LEV 52120-M1 TVSS 1PH3W W/O CTR 120
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$889.02/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 52120-M1
North Coast Part # 72922

Specifications

Warranty

  • Warranty: Limited Lifetime

Product Features

  • Replaceable Modules: Yes
  • Country Of Origin: Mexico

Standards and Certifications

  • ANSI/IEEE Category A, B & C: C-62.41 & 62.45
  • UL1449 3rd Edition: CSA Certified and UL Listed Type 2

Performance Data

  • Noise Rejection: -20 to -40 dB at 5kHz-10MHz
  • Protection Mode: 2 Mode
  • Nominal Discharge Current Rating: 20kA
  • VPR: L-N:1000V, L-G:1500V, N-G:700V
  • Diagnostics: Real Time Protection status LEDs & Audible Alarm
  • Remote Monitoring: Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
  • Short Circuit Current Rating: 100kA
  • Maximum Surge Current, Per Mode (Per Phase): 100kA (200kA)
  • MCOV: L-N:150V, L-G:300V, N-G:150V

Mechanical Specifications

  • Surge Counter: No
  • Connection Type: Parallel-hardwired, feed-through dual wire terminal block: Accepts up to #3 AWG wire

Electrical Specifications

  • Surge Technology: 40mm MOV Design
  • Recommended Circuit Breaker Rating: 30A, 120V
  • Frequency: 50/60Hz
  • Voltage Configuration: 120 V, Single Phase

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -20⁰C to 40⁰C
  • Storage Temperature: -4°F to 185°F (-20°C to 85°C)
  • Enclosure: Type 12
  • Relative Humidity: 5% to 95% non-condensing

Categories

Overview

UPC 07847785168
Item Long Description 120 Volt, Single Phase, Surge Panel with Replaceable Surge Modules, 100kA L-N Max Surge Current, NEMA 12 Enclosure
GTiN 00078477851685
Warranty Length Lifetime Limited
Size 14.19 H x 10.31 W x 5D IN
Operating Temperature -20 To 40 C
Voltage 120 Volt
Type Type 2
Material Powder Coated Steel
Applications Commercial
Country of Origin Mexico
Standard ANSI\IEEE (Category C-62.41, C-62.45),CULus Listed,NEMA
Frequency 50/60 Hz
Connection Type Feed-Through Dual Wire Terminal Block,Parallel-Hardwired
Family Brand Name Leviton
NEMA 12
Number of Phases 1 Phase
Flamability Class Rated V-2 Per UL 94
TC Connection Parallel Hardwired, Feed-Through Dual Wire Terminal Block, Accepts up to 3 AWG Wire
Short Circuit Current 100 kA
Environmental Conditions -20 to 85 C
Indicator Noise Filtering
Storage Temperature -20 To 85 C
Temperature Rating -20 to 40 C
Blade Dimensions 10.31 in W x 5 in D x 14.19 in H
Number of Wires 3
