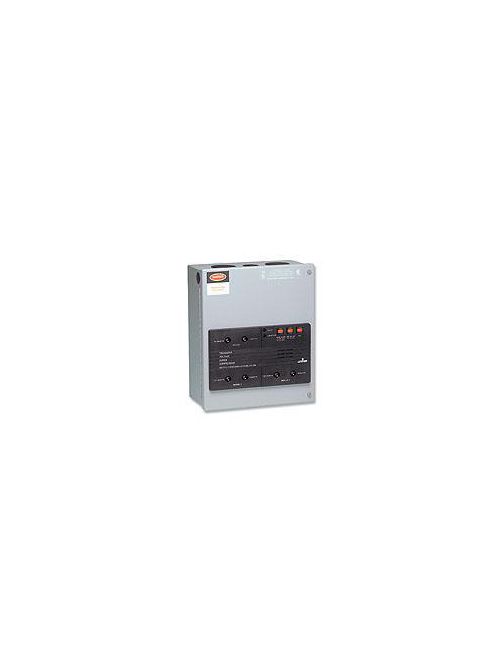

LEV 52240-DM3 TVSS 3PH4W DELTA 240V
Product image thumbnail 0
Product image thumbnail 1
$2,392.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 52240-DM3
North Coast Part # 215272

Specifications

Warranty

  • Warranty: Limited Lifetime Warranty

Product Features

  • Warranty: 5-Year Limited
  • Surge Counter: No
  • Protection Mode: 4-Mode
  • Wire: 4
  • Standards and Certifications: UL1449 / CSA / ANSI/IEEE
  • Country Of Origin: Mexico
  • UL1449 Impulse 6kV/500A L-N/L-G/N-G/L-L: 600/1200/600/1200
  • Pole: 3
  • Module No.: (3) 2240
  • Diagnostics: LED
  • Replaceable Modules: Yes
  • MCOV: 250V AC

Standards and Certifications

  • ANSI/IEEE Category A, B & C: C-62.41 & 62.45
  • UL 1449 4th Edition: cULus Listed Type 2

Performance Data

  • Noise Rejection: -20 to -40 dB at 5kHz-10MHz
  • Protection Mode: 4-Mode
  • Nominal Discharge Current Rating: 20kA
  • VPR: L-L:1500V
  • Diagnostics: LED
  • Remote Monitoring: Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
  • Short Circuit Current Rating: 100kA
  • Maximum Surge Current, Per Mode (Per Phase): 100kA (200kA)
  • MCOV: 250V AC

Mechanical Specifications

  • Surge Counter: No
  • Connection Type: Parallel-hardwired, feed-through dual wire terminal block: Accepts up to #3 AWG wire

Electrical Specifications

  • Surge Technology: 40mm MOV Design
  • Recommended Circuit Breaker Rating: 30A, 240V
  • Frequency: 50/60Hz
  • Voltage Configuration: 240 V, 3-Phase Delta

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -20⁰C to 40⁰C
  • Storage Temperature: -4°F to 185°F (-20°C to 85°C)
  • Enclosure: Type 12
  • Relative Humidity: 5% to 95% non-condensing

Overview

UPC 07847785350
GTiN 00078477853504
Warranty Length 5 yr
Size 14.19 H x 10.31 W x 5D IN
Operating Temperature -20 To 40 C
Voltage 240 Volt
Type Type 2 SPD
Material Powder Coated Steel
Applications For Commercial Use
Country of Origin Mexico
Standard ANSI,CSA,IEEE,UL1449
Frequency 50/60 Hz
Connection Type Feed-Through Dual Wire Terminal Block,Parallel-Hardwired
Family Brand Name Leviton
Wire Count 4
NEMA 12
Number of Phases 3 Phase
Flamability Class Rated V-2 Per UL 94
TC Connection Parallel-Hardwired, Feed-Through Dual Wire Terminal Block, Accepts Up to 3 AWG Wire
Short Circuit Current 100 kA
Environmental Conditions -20 to 85 C Temperature
Number of Poles 3 Pole
Indicator Noise Filtering
Storage Temperature -20 To 85 C
Temperature Rating -20 to 40 C
Blade Dimensions 10.31 in W x 5 in D x 14.19 in H
Number of Wires 4
Nominal Discharge Current 20 kA
