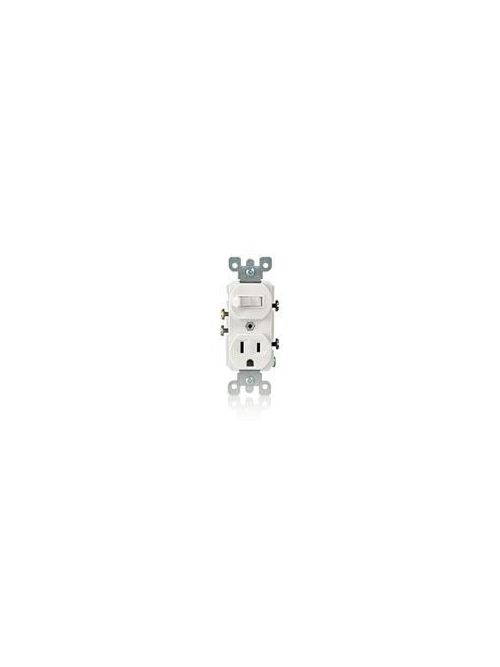

LEV 5225-T LA COMB SW SP/REC 2PO3WI
Product image thumbnail 0
Product image thumbnail 1
$15.08/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5225-T
North Coast Part # 269253

Features

  • AC quiet switches have silver-cadmium oxide contacts and receptacles have double-wipe contacts for maximum conductivity
  • All devices have grounding screw
  • Side wired with terminal screws that accept up to #12 copper or copper-clad wire
  • Fit standard wallboxes
  • Break-off tabs on devices with AC quiet switches permit conversion to seperate feeds
  • Backed by a Limited Two-Year Warranty

Specifications

Product Features

  • Amperage: 15 A
  • Warranty: 2-Year Limited
  • HP Rating: 1/2HP-120V
  • Color: Light Almond
  • Standards and Certifications: UL/CSA
  • Strap Material: Steel
  • Country Of Origin: Mexico
  • Feature: Single-Pole / 5-15R
  • Body Material: Thermoplastic
  • Max. Amperage: 12 Amp
  • Grounding: Grounding
  • Termination: Side
  • Type: Duplex Style Combination Switch
  • Actuator Material: Thermoplastic
  • Voltage: 120 VAC

Categories

Overview

UPC 07847727488
GTiN 00078477274880
Warranty Length 2 yr
Size 4.20 H x 1.62 W x 16 D IN
Color Light Almond
Operating Temperature -40 To 120 C
Voltage 120 Volt
Type Duplex
Material Thermoplastic
Applications Commercial
Mounting Type Wallplate, Recessed/Flush
Country of Origin Mexico
Standard CSA,UL
Connection Type Side Wired
Horsepower 1/2 hp
Body Material Thermoplastic
Family Brand Name Leviton
NEMA 5-15R
Grounding Grounding
TC Connection Side Wired
Actuator Toggle
Amperage 15 Amp
Max Current 12 A
Environmental Conditions Flammability (Rated V-2 per UL94)
Contact Rating 120 V
Number of Poles 1 Pole
Switch Type Toggle
Temperature Rating -40 to 120 C
Blade Dimensions 1.62 in W x 16 in D x 4.2 in H
