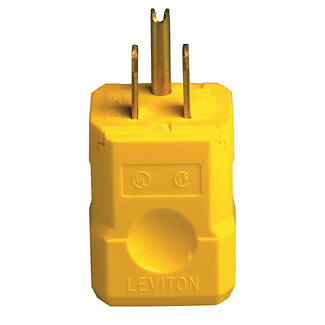

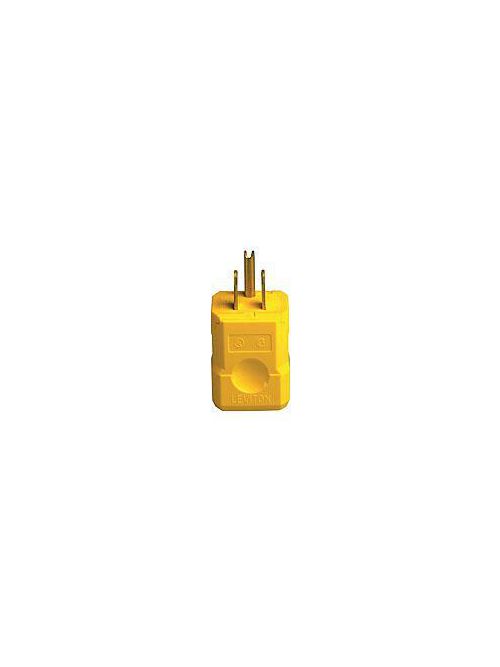

Leviton 5256-VY 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15P Yellow Nylon Grounding Polarized Straight Blade Plug
$11.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5256-VY
North Coast Part # 69626

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: Yellow
  • Clamp Insert: Nylon
  • Blades/Contacts: Solid Brass
  • Back Cover: Thermoplastic
  • Terminal Screws: Brass
  • Body Material: Super Tough Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • ANSI: C-73
  • UL 498: File E13399
  • NEMA: WD-6

Product Features

  • Color: Yellow
  • Device Type: Straight Blade Plug
  • Brand: Python
  • Country Of Origin: Mexico
  • NEMA: 5-15P

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .245 - .700
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Grounding

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847705601
GTiN 00078477056011
Warranty Length 2 yr
Size 1.81 H x 1.41 W x 1.22 D IN
Color Yellow
Operating Temperature -40 C
Voltage 125 Volt
Type Straight Blade Plug
Material Super Tough Nylon
Conductor Size 18-10 AWG
Applications For Industrial Use
Mounting Type Cable, Surface
Country of Origin Mexico
Wire Size 18-10 AWG
Standard ANSI C-73
Blade Type Solid Brass
Body Material Super Tough Nylon
Screw Type Zinc-Plated,Steel
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA WD-6,5-15P
Dielectric 2000 V
Environment Dry
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
Contact Material Solid Brass
Amperage 15 Amp
Blade Dimensions 1.41 in W x 1.22 in D x 1.81 in H
Cord Size 0.250 - 0.655 in
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Straight Blade Plug
Sub Brand Python
