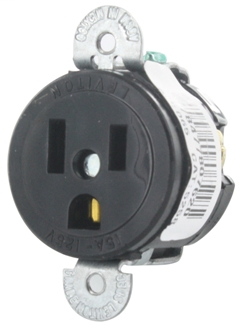

LEV 5258-SS SHORT STRAP RECEPT
$11.44/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5258-SS
North Coast Part # 71445

Specifications

Material Specifications

  • Line Contacts: Plated Brass
  • Color: Black
  • Cover Material: Nylon
  • Strap Material: Galvanized Steel
  • Base Material: Nylon
  • Grounding Screw: Plated Steel
  • Terminal Screws: Plated Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Grounding

Product Features

  • Color: Black
  • Country Of Origin: Mexico
  • NEMA: 5-15R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Side

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847780762
GTiN 00078477807620
Warranty Length 10 yr
Size 2.31 H x 1.20 D IN
Color Black
Operating Temperature -40 C
Voltage 125 Volt
Type Single Receptacle
Applications Commercial
Mounting Type Box
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Side Wired
Horsepower 1/2 hp
Base Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-6
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Side Wired
Amperage 15 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Cover Material Nylon
