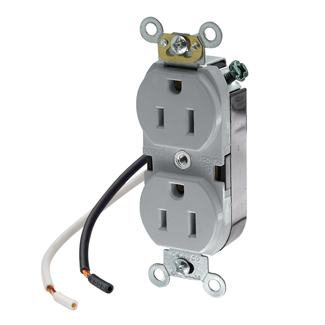

LEV 5262-CGY FED SPEC 2LEAD REC 15A
Product image thumbnail 0
Product image thumbnail 1
$24.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5262-CGY
North Coast Part # 1342267

Features

  • Constructed with impact-resistant thermosplastic cover and body
  • Dual drive pins for sturdy assembly
  • Large, triple-wipe brass "T" contacts for superior contact pressure, outstanding conductivity
  • #12 AWG THHN wire leads, 6" length
  • Heavy gauge, locked-in wrap-around mounting strap
  • Backed by a Limited 10-Year Warranty

Specifications

Material Specifications

  • Mounting Strap: Steel multipiece with 2 drive pins
  • Cover Material: Thermoplastic
  • Wiring: 1 Hot Lead, 1 Neutral Lead
  • Bushing: Die Cast
  • Base Material: Thermoplastic
  • Power Contacts: Phosphor Bronze, triple wipe
  • Terminal Leads: 6", #12 AWG THHN
  • Mounting Screws: Triple Combination Head, Steel

Standards and Certifications

  • ANSI: C-73
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • NEMA: WD-6

Product Features

  • Amperage: 15 A
  • Warranty: 10-Year Limited
  • Wire: 3
  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Color: Gray
  • Standards and Certifications: UL/CSA
  • Country Of Origin: Mexico
  • Grade: Heavy-Duty Industrial Specification Grade
  • Pole: 2
  • Device Type: Duplex Receptacle Outlet
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Mechanical Specifications

  • Termination: Pre-Wired Leads (hot and neutral)
  • Product ID: Ratings are permanently marked on device
  • Lead Identification: Leads identified in accordance with UL 498

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Maximum Working Voltage: 125V as rated
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding
  • Dielectric Voltage Withstand: 2000V minimum per UL 498

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847744338
Item Long Description Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
GTiN 00078477443385
Warranty Length 10 yr
Size 46 H x 1.53 W x 1.11 D IN
Color Gray
Operating Temperature -40 C
Voltage 125 Volt
Type Duplex Outlet,Straight Blade
Material Thermoplastic
Applications Commercial
Mounting Type Wall Box
Grade Heavy-Duty Industrial Specification
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73,CSA,UL
Connection Type Wire Lead
Base Material Thermoplastic
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-6
Number of Phases 1 Phase
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Wire Lead
Amperage 15 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
Cover Material Thermoplastic
