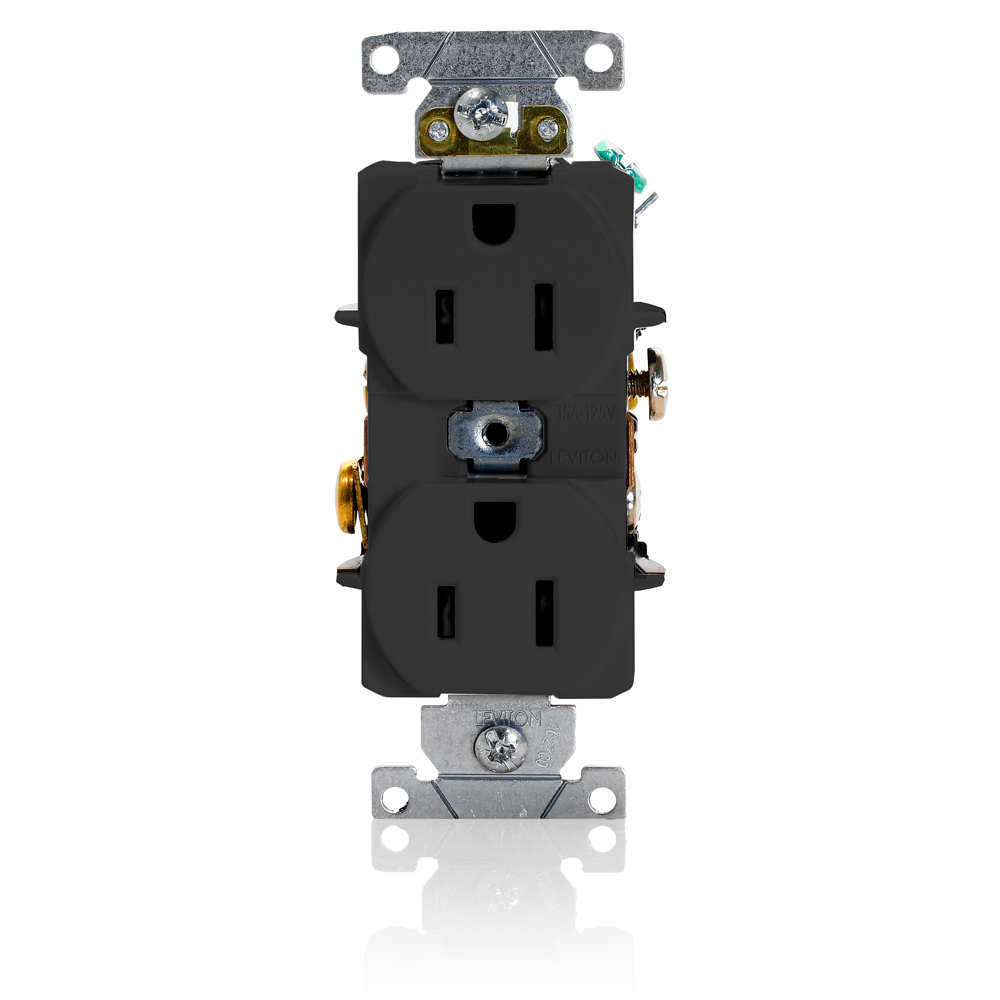

LEV 5262-SE SM DUP REC 15A -125V -S
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.73/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5262-SE
North Coast Part # 668467

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: 0.030" Brass
  • Face Material: PBT Polyester Blend
  • Color: Black
  • Strap Material: Steel (Galvanized G60)
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Terminal Screws: #8 Triple-Drive Brass
  • Body Material: PBT Polyester Blend

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-1 & WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 3000 V min
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Color: Black
  • Country Of Origin: Mexico
  • Grade: Heavy-Duty Industrial Specification Grade
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Terminal ID: Brass-Hot, Silver-Neutral, Green-Ground
  • Product ID: Ratings are permanently marked on the device
  • Terminal Accom.: #14-#10 AWG
  • Termination: Back and Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 75°C

Categories

Overview

UPC 07847720531
GTiN 00078477205310
Warranty Length 10 yr
Size 46 H x 1.33 W x 19 D IN
Color Black
Operating Temperature -40 C
Voltage 125 Volt
Type Smooth Face
Material Thermoplastic
Applications For Commercial
Mounting Type Wallbox
Grade Commercial
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Back and Side Wired
Horsepower 1/2 hp
Face Material Polyester
Body Material PBT Polyester Blend
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-1,WD-6
Number of Phases 1 Phase
Dielectric 3000 V
Flamability Class Rated V-0 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
Conductor Size 14-10 AWG
Blade Dimensions 46 in H x 1.33 in W x 19 in D
