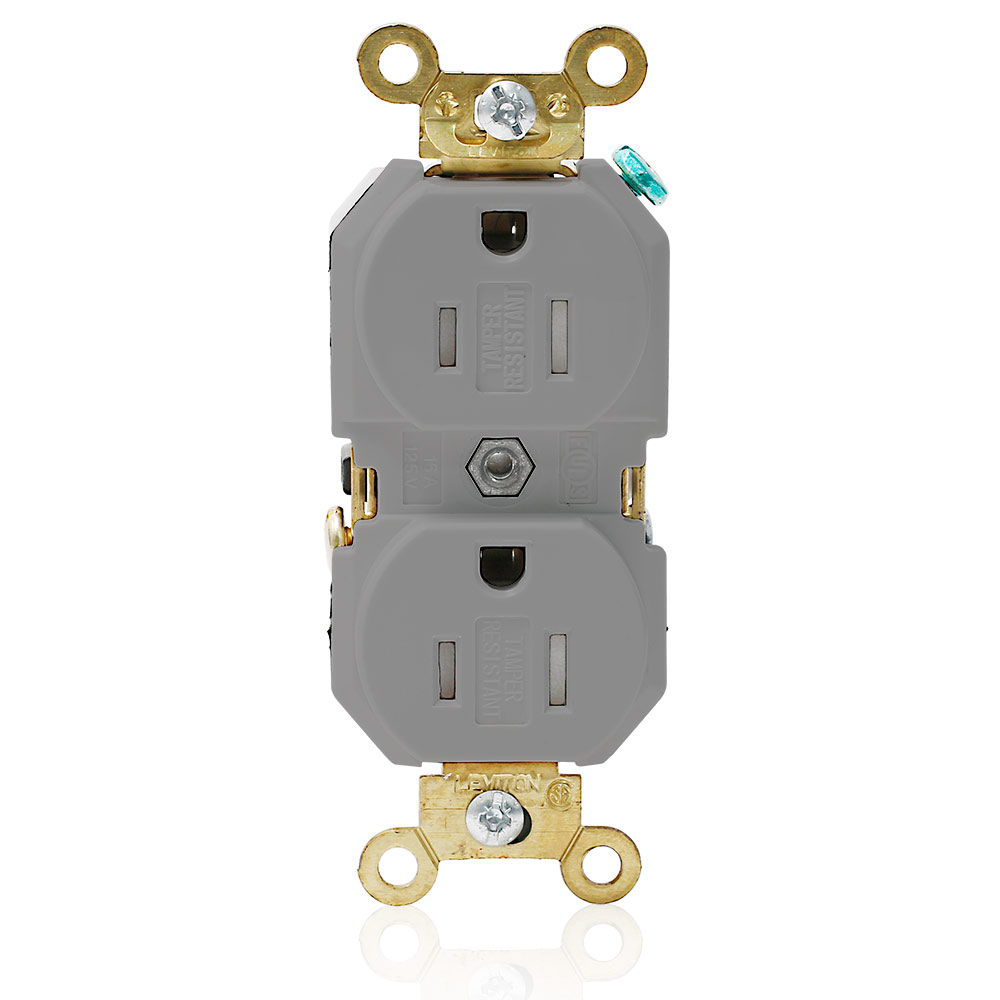

LEV 5262-SGG GY TR REC DUP 2PO3WI 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$27.09/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5262-SGG
North Coast Part # 1163327

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: Triple-Wipe .040" High Performance Brass Alloy
  • Face Material: Nylon
  • Terminal Screws: Brass 10-32
  • Strap Material: Brass .050"
  • Grounding Screw: Brass 8-32
  • Body Material: Nylon
  • Terminal Clamp: Zinc-Plated Steel

Warranty

  • Warranty: 10-Year Limited

Standards and Certifications

  • ANSI: C-73
  • Certification/Listing: UL, CSA, NOM-ANCE
  • NEMA: WD-1 & WD-6
  • Applicable Standards: UL 498, CSA C22.2 No. 42, FedSpec W-C 596

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 5-15R
  • Color: Gray
  • Country Of Origin: Mexico
  • Grade: Extra Heavy-Duty Industrial Specification Grade
  • Feature: Tamper-Resistant, Smooth Face
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Wire Type: Solid or Stranded Building Wire
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 75°C

Overview

UPC 07847713356
GTiN 00078477133569
Warranty Length 10 yr
Color Gray
Operating Temperature -40 C
Type Duplex Receptacle
Applications Industrial
Grade Extra Heavy-Duty Industrial Specification
Country of Origin Mexico
Standard ANSI C-73,CSA C22.2 No. 42,FedSpec W-C 596,UL 498
Wire Type Solid Building Wire,Stranded Building Wire
Horsepower 1/2 hp
Face Material Nylon
Body Material Nylon
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-1,WD-6
Dielectric 2000 V
Certifications CSA,NOM-ANCE,UL
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
