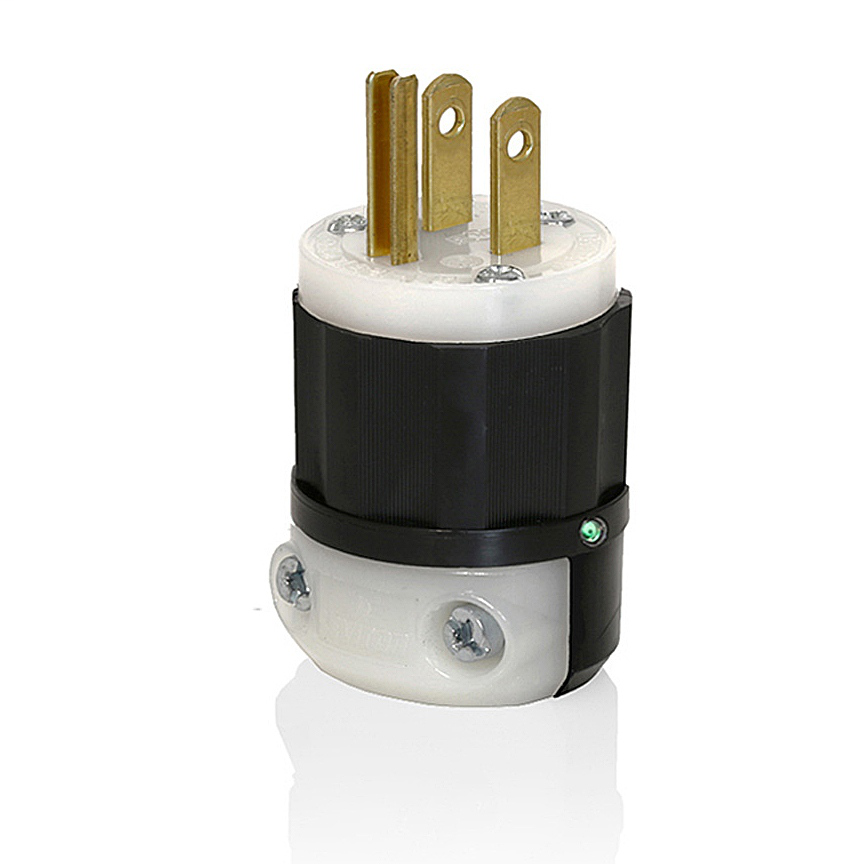

LEV 5266-PLC IND PILOT LT PLUG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$22.25/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5266-PLC
North Coast Part # 68312

Specifications

Environmental Specifications

  • Environment: Dry

Product Features

  • Amperage: 15 A
  • Flammability: Rated HB or better UL94
  • Warranty: 10-Year Limited
  • Wire: 3
  • NEMA: 5-15P
  • Color: Black-White
  • Country Of Origin: United States
  • Brand: Black and White
  • Blades/Contacts: Solid Brass
  • Feature: Power Indication
  • Device Type: Straight Blade Plug
  • Body Material: Impact Modified Nylon
  • Wire Gauge: 18-10 AWG
  • Pole: 2
  • Grounding: Grounding
  • Cord Range: 0.250 to 0.700
  • Assembly Screws: Steel, Zinc Plated
  • Standards and Certifications: UL/CSA
  • Voltage: 125 VAC

videos

Categories

Overview

UPC 07847707707
GTiN 00078477077078
Warranty Length 10 yr
Size 1.53 Dia x 1.98 H IN
Color Black,White
Voltage 125 Volt
Type Industrial Grade
Material Super Tough Nylon (Body)
Conductor Size 18 - 10 AWG
Applications Industrial
Mounting Type Cable
Country of Origin USA
Wire Size 18-10 AWG
Standard CSA,UL
Blade Type Solid Brass
Body Material Impact Modified Nylon
Screw Type Steel,Zinc-Plated
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15P
Environment Dry
Flamability Class Rated HB Or Better UL94
Grounding Grounding
Contact Material Brass
Amperage 15 Amp
Blade Dimensions 1.53 in dia x 1.98 in H
Environmental Conditions Operating Temperature Range (-40 to 60) C
Number of Poles 2 Pole
Number of Wires 3
Device Type Straight Blade Plug
Sub Brand Black & White
