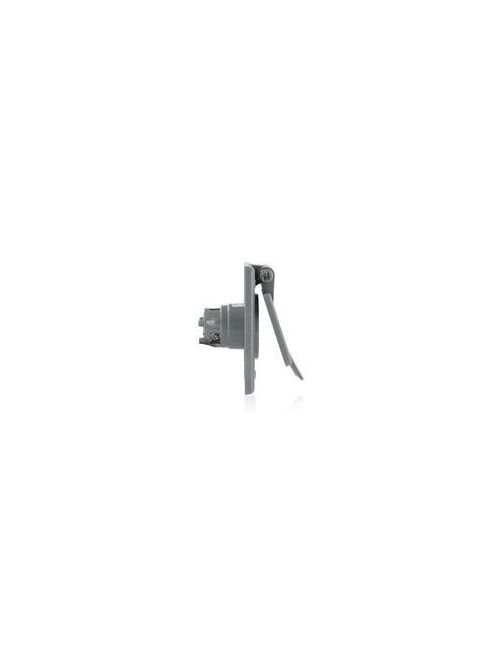

LEV 5279-CWP GY OUTLET FLNG/COVER W
Product image thumbnail 0
Product image thumbnail 1
$69.77/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5279-CWP
North Coast Part # 331310

Specifications

Material Specifications

  • Line Contacts: Brass
  • Face Material: Thermoplastic Glass Filled
  • Color: Gray
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Thermoplastic Glass Filled
  • Cover and Plate Material: Glass-Filled Thermoplastic

Standards and Certifications

  • Warranty: 10-Year Limited
  • ANSI: C-73
  • UL498: File E13399
  • CSA C22.2 No. 42: File LR-16347
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 1500V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Grounding

Product Features

  • Color: Gray
  • Device Type: Straight Blade Flanged Inlet
  • Country Of Origin: United States
  • NEMA: 5-15R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 18-10 AWG
  • Termination: Standard Wire Wells

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847701872
GTiN 00078477018729
Warranty Length 10 yr
Size 4.56 H x 2.84 W x 2.82 D IN
Color Gray
Operating Temperature -40 C
Voltage 125 Volt
Type Flanged Outlet
Material Glass-Filled Thermoplastic
Applications Industrial
Mounting Type FD Box,FS Box,Panel
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Connection Type Standard Wire Well
Horsepower 1/2 hp
Face Material Glass Filled,Thermoplastic
Body Material Thermoplastic Glass Filled
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-6
Dielectric 1500 V
Environment Dry
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Standard Wire Well
Amperage 15 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Straight Blade Flanged Inlet
