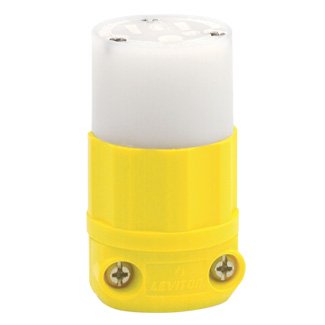

LEV 52CM-69C #1CD/CORROSION RESIST.
$33.46/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 52CM-69C
North Coast Part # 1017712

Specifications

Material Specifications

  • Face Material: Nylon
  • Color: Yellow-White
  • Clamp Insert: Nylon
  • Blades/Contacts: Nickel-Plated Brass
  • Back Cover: Thermoplastic
  • Housing Material: Nylon
  • Terminal Screws: Nickel-Plated Brass 8-32
  • Body Material: Super Tough ST801 Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Stainless Steel 300

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13393
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Product Features

  • NEMA: 5-15R
  • Color: Yellow-White
  • Brand: Black and White
  • Country Of Origin: United States
  • Device Type: Straight Blade Connector
  • Body Material: Super Tough ST801 Nylon
  • Cord Range: 0.230 to 0.685

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: 0.230 to 0.685
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Grounding

Environmental Specifications

  • Environment: Corrosive
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847779534
GTiN 00078477795347
Warranty Length Lifetime Limited
Size 1.53 Dia x 1.98 H IN
Color White,Yellow
Operating Temperature -40 C
Voltage 125 Volt
Type Connector
Material Super Tough Nylon
Applications Industrial
Mounting Type Cable
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Blade Type Nickel-Plated Brass
Face Material Nylon
Body Material Super Tough ST801 Nylon
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-6
Dielectric 2000 V
Environment Corrosive
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
Actuator Stainless Steel 300
Amperage 15 Amp
Environmental Conditions Operating Temperature Range (-40 to 60) C
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Straight Blade Connector
