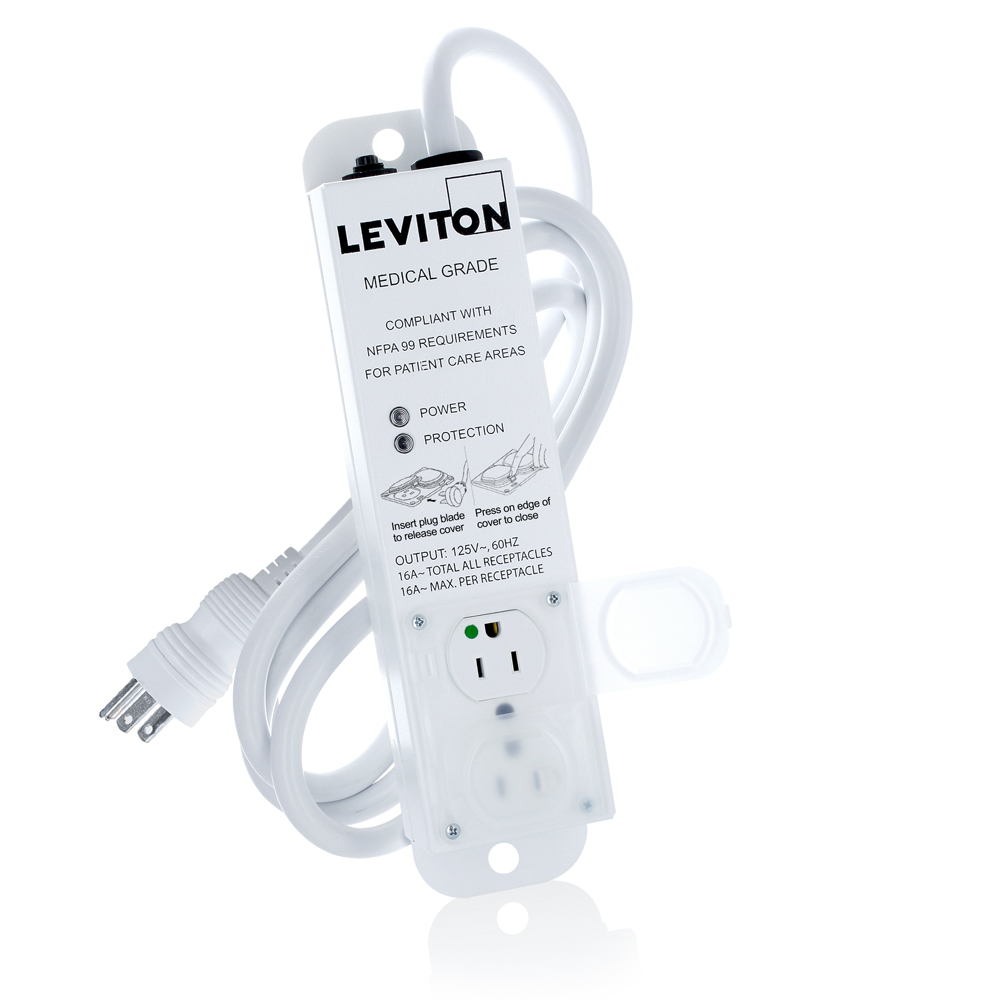

LEV 5302M-1S7 15A MEDGRD PWR STRIP
$167.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5302M-1S7
North Coast Part # 1347386

Specifications

Material Specifications

  • Line Cord: #14/3 SJT
  • Outlet Covers: Polypropylene
  • Enclosure: Powder Coated Steel

Warranty

  • Warranty: Lifetime Limited

Standards and Certifications

  • ANSI/IEEE: Category A
  • UL 60950-1 & CSA C22.2: No. 60950-1
  • UL 60601-1 & CSA C22.2: No.60601-1
  • UL 1363A & CSA C22.2: No. 21
  • NFPA: NFPA 99 2012 ed
  • UL 1449 3rd Ed & CSA C22.2: No. 8

Performance Data

  • Voltage Protection Rating (VPR) L-N, L-G, N-G: 600V, 600V, 500V
  • Maximum Surge Current, Per Mode (L-N): 27kA
  • Noise Filtering: -6dB to -29dB (100kHz to 100MHz)
  • Joules Rating: 644J
  • MCOV: 150V
  • Maximum Leakage Current: <100µA

Mechanical Specifications

  • HG Plug Configuration: NEMA 5-15P
  • HG Outlet Configuration: NEMA 5-15R

Electrical Specifications

  • Amperage: 15 A
  • Grade: Medical
  • Number of Receptacles: 2
  • Cord Length: 7 Foot
  • Voltage: 125 VAC
  • Surge Technology: MOV
  • Frequency: 60Hz

Environmental Specifications

  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -10°C to +50°C

videos

Overview

UPC 07847761156
GTiN 00078477611562
Warranty Length Lifetime
Operating Temperature 0 C
Voltage 125 Volt
Type Power Strip
Applications Medical
Grade Medical
Frequency 60 Hz
Family Brand Name Leviton
Amperage 15 Amp
Enclosure Powder-Coated Steel
Storage Temperature -10 To 50 C
