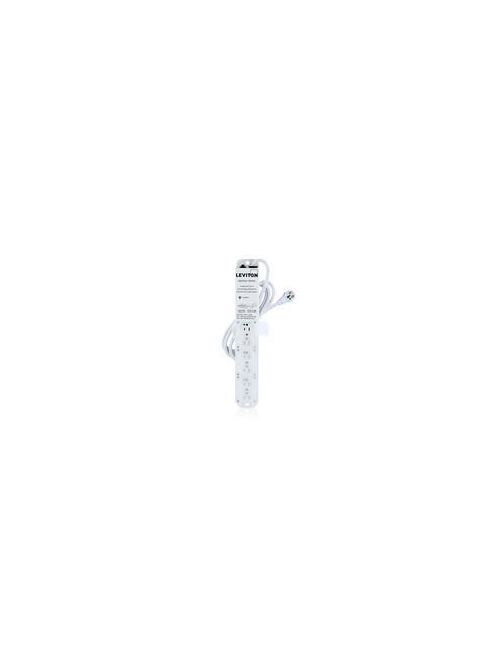

LEV 5306M-1N7 MED STRIP 15A 6REC 7-
Product image thumbnail 0
Product image thumbnail 1
$169.80/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5306M-1N7
North Coast Part # 876705

Specifications

Material Specifications

  • Line Cord: #14/3 SJT
  • Outlet Covers: Polypropylene
  • Enclosure: Powder Coated Steel

Warranty

  • Warranty: Limited Lifetime Warranty

Standards and Certifications

  • NFPA: NFPA 99 2012 ed
  • UL 60950-1 & CSA C22.2: No. 60950-1
  • UL 60601-1 & CSA C22.2: No.60601-1
  • UL 1363A & CSA C22.2: No. 21

Performance Data

  • Maximum Leakage Current: <100µA

Mechanical Specifications

  • HG Plug Configuration: NEMA 5-15P
  • HG Outlet Configuration: NEMA 5-15R

Electrical Specifications

  • Amperage: 15 A
  • Grade: Medical
  • Number of Receptacles: 6
  • Cord Length: 7 Foot
  • Voltage: 125 VAC
  • Frequency: 60Hz

Environmental Specifications

  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -10°C to +50°C

videos

Overview

UPC 07847761192
GTiN 00078477611920
Warranty Length Lifetime Limited
Size 16.87 W x 2.6 H IN
Operating Temperature 0 C
Voltage 125 Volt
Type Power Strip
Material Powder Coated Steel, Polypropylene Cover
Applications For Commercial use
Grade Medical
Standard CSA Ceritified (C22.2 60601-1, C22.2 60950-1, C22.2 21),ETL Listed,NAFTA,NEC (2011Article 517),NFPA (99 2012 Ed),UL Listed (60601-1, 60950-1, 1363A, 1449)
Frequency 60 Hz
Family Brand Name Leviton
Amperage 15 Amp
Environmental Conditions -10 to 50 C
Enclosure Powder-Coated Steel
Indicator Indicator Light
Storage Temperature -10 To 50 C
Temperature Rating 0 - 40 C
Number of Outlets 6
Cord Length 7 ft
Blade Dimensions 16.87 in W x 2.6 in H
