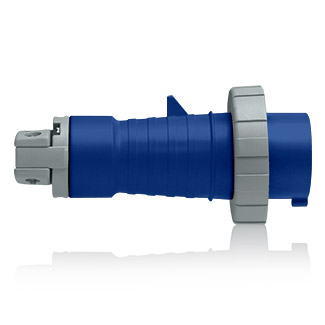

LEV 530P9W PLUG WTRTIGHT P/S 4PO5WI

Specifications

Material Specifications

• Internal Cord Clamp Assembly: Thermoplastic
• External Screws: Acid-Proof S/S
• Color: Blue
• Locking Ring: Valox 357
• Terminal Screws: Steel
• Grommet/Gasket: Chloroprene
• Body Material: Valox 357
• Gland Cap: Valox 357
• External Cord Clamp Assembly: Valox 357
• Phase and Ground Pins: Brass
• Internal Screws: Zinc-plated steel
• Contact Carrier: Nylon

Standards and Certifications

• Warranty: 2-Year Limited
• CSA Certified: C22.2 No 182.1
• CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC
• IEC Rating: 60309-1 and 60309-2
• UL Listed: 1682 and 1686

Product Features

• Color: Blue
• Device Type: Plug
• Configuration: North American
• Country Of Origin: Please Contact Customer Service.

Mechanical Specifications

• Minimum Withdrawal Force: 6lbs
• Cord Range: .437 - 1.450
• Cable Secureness: Force: 75lb, Torque: 0.5 ft-lb, Max Disp: <= 3/32"
• Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs
• Crush Test: 250lbs for 1 min after -25°C for 6 hrs

Electrical Specifications

• Amperage: 30 A
• Wire: 5
• Dielectric Voltage: 2000V for 1 min.
• Current Interrupting: Certified for current interrupting at full rated current
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Endurance: Up to 1000 connects and disconnects, under load, at full rated current and voltage
• Pole: 4
• Insulation Resistance: 500V for 1 min; >= 5MΩ
• Voltage: 120/208 VAC
• Phase: 3-Phase WYE

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
• Moisture Resistance: Per UL 1682, immersed for 24 hours in 5cm of 25°C water
• IP Rating: IP67/IP69K
