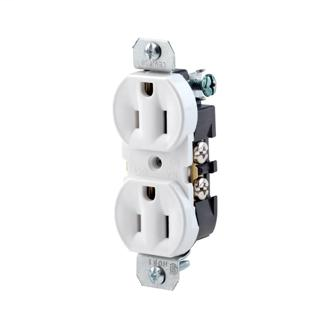

LEV 5320-4I 5-15R RECEP RESI NO EAR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.89/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5320-4I
North Coast Part # 1342270

Specifications

Product Features

  • Amperage: 15 A
  • Warranty: 2-Year Limited
  • Face Material: Thermoplastic
  • NEMA: 5-15R
  • Color: Ivory
  • Standards and Certifications: UL
  • Strap Material: Steel
  • Country Of Origin: United States
  • Feature: All Screws Backed Out
  • Body Material: Thermoplastic
  • Wire: 3
  • Pole: 2
  • Grounding: Grounding
  • Type: Duplex Receptacle
  • Voltage: 125 VAC

videos

Overview

UPC 07847784903
Item Long Description 15 Amp, 125 Volt, Without Ears Duplex Receptacle, Residential Grade, Grounding, All Screws Backed Out, Ivory
GTiN 00078477849033
Warranty Length 2 yr
Size 4.2 H x 1.33 W x 19 D IN
Color Ivory
Voltage 125 Volt
Type Duplex Receptacle
Material Thermoplastic
Applications Commercial
Mounting Type Wallplate
Country of Origin USA
Wire Size 14 AWG
Standard CSA Certified (File LR-406),NOM Certified (057),UL Listed 1561,UL Listed 498
Connection Type Quickwire Push-In And Side Wired
Face Material Thermoplastic
Body Material Thermoplastic
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R
Certifications UL
Grounding Grounding
TC Connection Quickwire Push-In and Side Wired
Amperage 15 Amp
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
