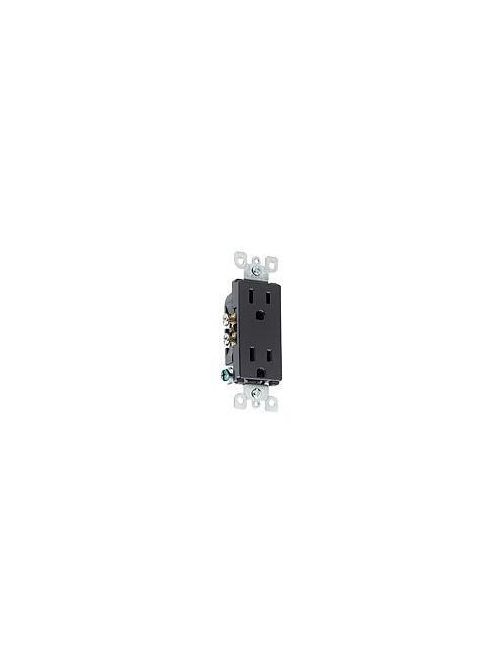

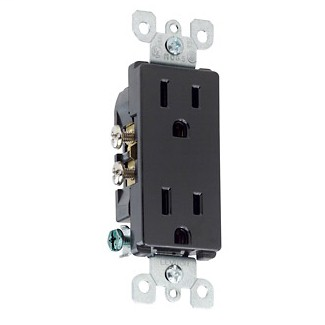

Leviton 5325-E 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R Black Thermoplastic Decorator Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.73/ea
In Stock | 3 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5325-E
North Coast Part # 209891

Specifications

Product Features

  • Amperage: 15 A
  • Warranty: 1-Year Limited
  • Face Material: Thermoplastic
  • NEMA: 5-15R
  • Color: Black
  • Standards and Certifications: UL/CSA
  • Strap Material: Steel
  • Country Of Origin: Please Contact Customer Service.
  • Pole: 2
  • Body Material: Thermoplastic
  • Wire: 3
  • Voltage: 125 VAC
  • Grounding: Grounding
  • Termination: Quickwire Push-In & Side
  • Type: Duplex Receptacle

videos

Categories

Overview

UPC 07847735678
Item Long Description 15 Amp, 125 Volt, Decora Duplex Receptacle, Residential Grade, Grounding, Ebony
GTiN 00078477356784
Finish Untreated
Warranty Length 1 yr
Size 4.20 H x 1.31 W x 0.98 D IN
Color Black
Voltage 125 Volt
Type Outlet
Material Thermoplastic
Conductor Size 14 AWG
Applications Commercial
Mounting Type Wallplate, Flush
Grade Commercial
Wire Size 14 AWG
Standard CSA,UL
Connection Type Quickwire Push-In and Side Wired
Face Material Thermoplastic
Body Material Thermoplastic
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R
Grounding Grounding
TC Connection Quickwire Push-In and Side Wired
Amperage 15 Amp
Blade Dimensions 33 mm W x 17.8 mm D x 103.2 mm H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Decora
