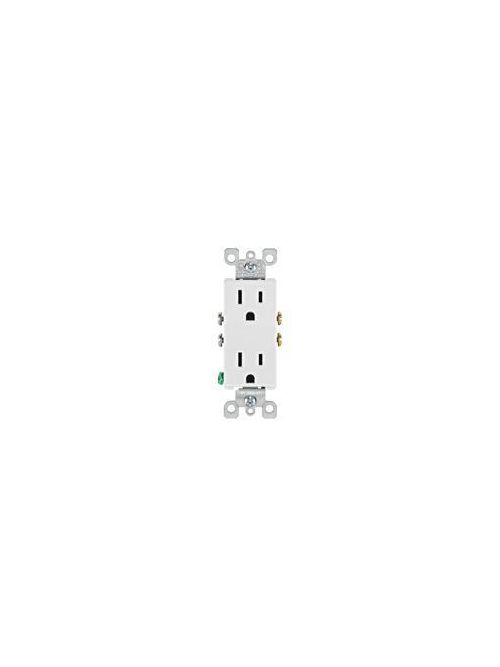

Leviton 5325-W 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R White Thermoplastic Decorator Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$2.66/ea
In Stock | 429 available at 13 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5325-W
North Coast Part # 209993

Features

  • Terminal screws accepts up to No. 12 AWG copper-clad wire
  • Quickwire push-in terminals accept No. 14 AWG copper wire only.
  • Double-wipe power contacts for reliable conductivity and plug retention.
  • Heavy-gauge zinc-plated steel mounting strap
  • Backed by a Limited Two-Year Warranty

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Face Material: Thermoplastic
  • Color: White
  • Strap Material: Steel
  • Grounding Screw: Steel 8-32
  • Terminal Screws: Brass
  • Body Material: Thermoplastic

Standards and Certifications

  • NOM Certified: 057
  • UL 498: File E13399
  • CSA C22.2 No. 42: File LR-406
  • UL Listed: File E-13399

Electrical Ratings

  • Amperage: 15 A
  • Voltage: 125 VAC

Product Features

  • Amperage: 15 A
  • Warranty: 2-Year Limited
  • Face Material: Thermoplastic
  • NEMA: 5-15R
  • Color: White
  • Standards and Certifications: UL/CSA
  • Strap Material: Steel
  • Country Of Origin: Please Contact Customer Service.
  • Pole: 2
  • Body Material: Thermoplastic
  • Wire: 3
  • Voltage: 125 VAC
  • Termination: Quickwire Push-In & Side
  • Type: Duplex Receptacle

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, White-Neutral
  • Terminal Accom.: 14-12 AWG
  • Grounding: Grounding

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

videos

> View Substitutes (1)

Overview

UPC 07847723330
GTiN 00078477233306
Warranty Length 2 yr
Size 4.20 H x 1.31 W x 0.98 D IN
Color White
Operating Temperature -40 C
Voltage 125 Volt
Type Outlet
Material Thermoplastic
Conductor Size 14-12 AWG
Applications Commercial
Mounting Type Wallplate, Flush
Grade Commercial
Wire Size 14-12 AWG
Standard CSA,UL
Connection Type Quickwire Push-In and Side Wired
Face Material Thermoplastic
Body Material Thermoplastic
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Quickwire Push-In and Side Wired
Amperage 15 Amp
Blade Dimensions 38.7 mm W x 29 mm D x 103.2 mm H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Decora
