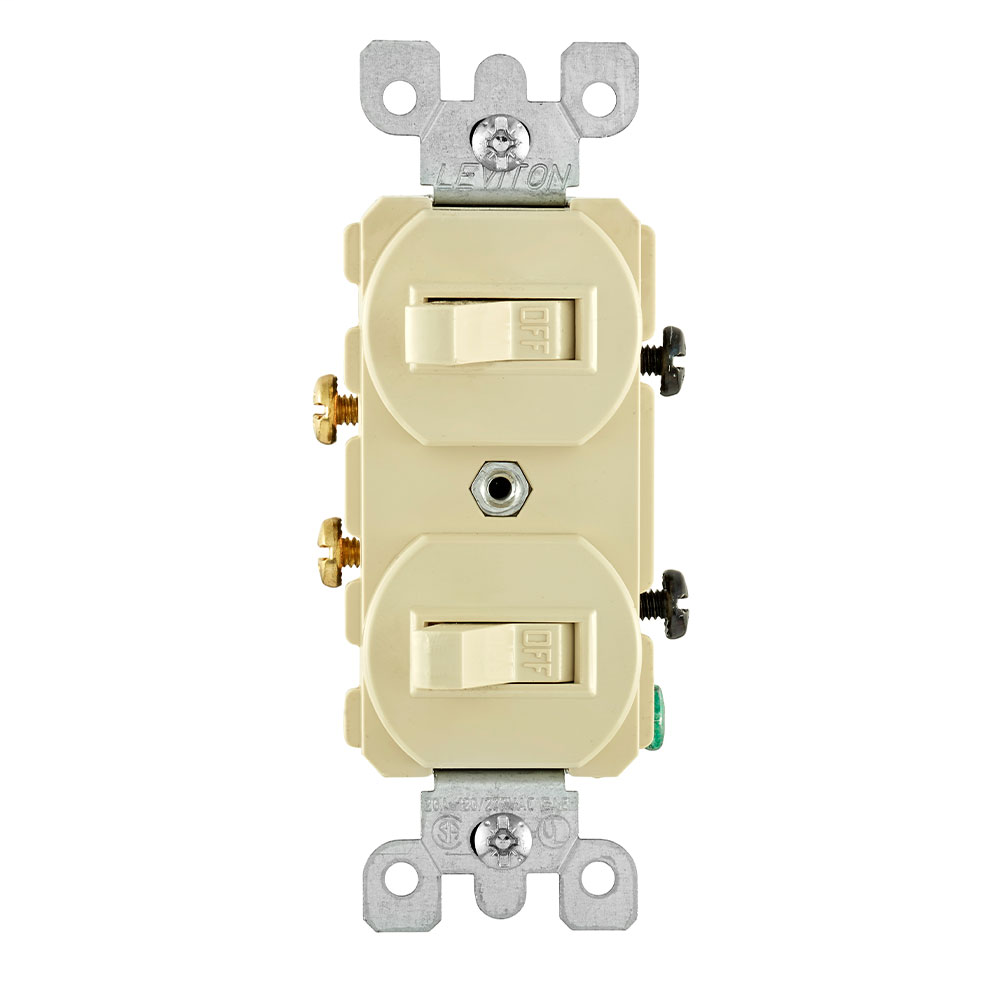

LEV 5334-I XOMBO/2SP SW
$32.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5334-I
North Coast Part # 210508

Specifications

Material Specifications

  • Color: Ivory
  • Body Material: Thermoplastic
  • Strap Material: Steel
  • Actuator Material: Thermoplastic

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: 057
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • UL Standard: UL 20
  • CSA C22.2 No. 111: File #152105

Electrical Specifications

  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Temperature Rise: Maximum 30 degrees C rise
  • Switch Amperage: 20 Amp
  • Grounding: Non-Grounding
  • Switch Voltage: 120/277V AC
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Amperage: 20 A
  • Warranty: 2-Year Limited
  • HP Rating: 1HP-120V 2HP-240V-277V
  • Color: Ivory
  • Standards and Certifications: UL
  • Country Of Origin: Mexico
  • Feature: Single-Pole / Single-Pole
  • Grounding: Non-Grounding
  • Product Type: 2-Switch Combo
  • Type: Duplex Style Combination Switch

Mechanical Specifications

  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
  • Product ID: Stamped on Strap
  • Terminal Accom.: 14-12 AWG
  • Torque Range: 12-14 inch pounds
  • Termination: Side

AC Horsepower Ratings

  • Max. Amperage: 16 Amp
  • HP Rating: 1HP-120V 2HP-240V-277V

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 65°C

Categories

Overview

UPC 07847723340
GTiN 00078477233405
Warranty Length 2 yr
Size 4.20 H x 1.62 W x 16 D IN
Color Ivory
Operating Temperature -40 C
Voltage 120/277 Volt
Type Duplex Style Combination Switch
Material Thermoplastic Actuator, Steel Strap
Product Type 2-Switch Combo
Applications Commercial
Mounting Type Wallplate
Country of Origin Mexico
Standard ANSI C-73
Connection Type Side Wired
Torque 12-14 lb-in
Horsepower 1 hp
Body Material Thermoplastic
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 1500 V
Certifications UL
Flamability Class Rated V-2 Per UL 94
Grounding Non-Grounding
TC Connection Side Wired
Actuator Toggle
Amperage 20 Amp
Max Current 16 A
Environmental Conditions Flammability (Rated V-2 per UL94)
Contact Rating 120/277 V
Number of Poles 1 Pole
Temperature Rise 30 C
Blade Dimensions 1.62 in W x 16 in D x 4.2 in H
Action Toggle
