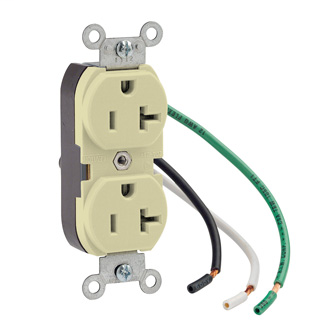

LEV 5340-I 5-20R RECEP COMM GRD LEA
$18.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5340-I
North Coast Part # 332482

Specifications

Material Specifications

  • Mounting Strap: Galvanized Steel with Riveted Ground Contacts
  • Grounding Leads: 6", #12 AWG THHN
  • Color: Ivory
  • Cover Material: Thermoplastic
  • Bushing: Die Cast Aluminum
  • Base Material: Thermoplastic
  • Power Contacts: Brass, triple wipe
  • Terminal Leads: 6", #12 AWG THHN
  • Mounting Screws: Triple Combination Head, Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Maximum Working Voltage: 125V as rated
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding
  • Dielectric Voltage Withstand: 2000V minimum per UL 498

Product Features

  • NEMA: 5-20R
  • Feature 4: Smooth Face
  • Color: Ivory
  • Country Of Origin: Mexico
  • Grade: Commercial Specification Grade
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Termination: Pre-Wired Leads
  • Product ID: Ratings are permanently marked on device
  • Lead Identification: Leads identified in accordance with UL 498 (black, white & green)

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847723707
GTiN 00078477237076
Warranty Length 10 yr
Size 46 H x 1.33 W x 19 D IN
Color Ivory
Operating Temperature -40 C
Voltage 125 Volt
Type Straight Blade,Duplex Outlet
Applications Commercial
Mounting Type Wall Box
Grade Commercial Specification
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Side Wired
Horsepower 1 hp
Base Material Thermoplastic
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-6
Number of Phases 1
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Side Wired
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Duplex Receptacle Outlet
Cover Material Thermoplastic
