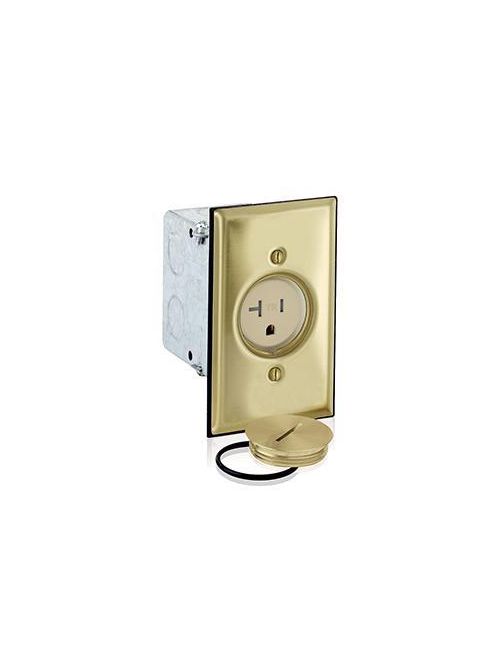

LEV 5349-TFB 5-20R FLOOR BOX TR BR
Product image thumbnail 0
Product image thumbnail 1
$117.94/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5349-TFB
North Coast Part # 1342314

Specifications

Material Specifications

  • Line Contacts: Brass Triple-Wipe
  • Face Material: Nylon
  • Floorplate Material: Solid Brass 0.060 In Thick
  • Cap Material: Brass
  • Strap Material: Zinc-Plated Steel
  • Grounding Screw: Steel
  • Body Material: Nylon
  • Mounting Screws: Steel

Warranty

  • Warranty: 10-Year Limited

Standards and Certifications

  • ANSI: C-73
  • Certification/Listing: cCSAus, NOM-ANCE
  • NEMA: WD-1 & WD-6
  • Applicable Standards: UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Voltage: 125 VAC

Product Features

  • Amperage: 20 A
  • NEMA: 5-20R
  • Color: Ivory
  • Country Of Origin: Mexico
  • Feature: Tamper-Resistant
  • Voltage: 125 VAC

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Terminal Accom.: 14-10 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 75°C

videos

Overview

UPC 07847770345
GTiN 00078477703458
Warranty Length 10 yr
Color Ivory
Operating Temperature -40 C
Voltage 125 Volt
Type FLOOR BOX ASSEMBLY
Mounting Type Screw
Country of Origin Mexico
Standard ANSI C-73,CSA C22.2 No 18.1-04,CSA C22.2 No. 42,UL 498,UL514A
Horsepower 1 hp
Face Material Nylon
Body Material Nylon
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-1,WD-6
Dielectric 2000 V
Certifications NOM-ANCE,cCSAus
Flamability Class Rated V-2 Per UL 94
Amperage 20 Amp
Number of Poles 2 Pole
Temperature Rise 150 %
