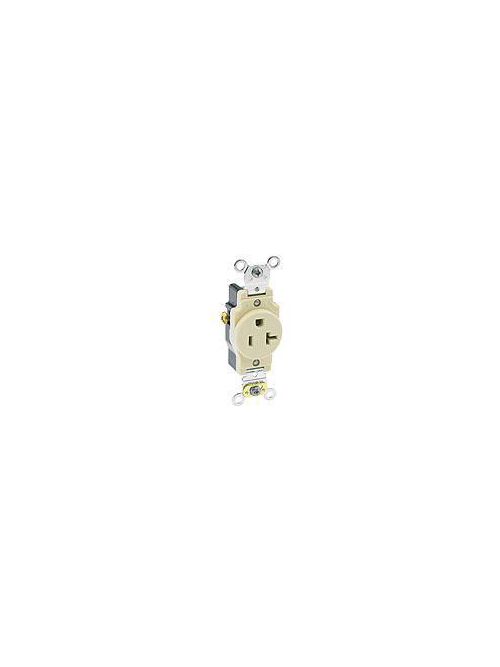

Leviton 5351-I 125 Volt 20 Amp 2-Pole 3-Wire NEMA 5-20R 1 Hp Ivory Thermoplastic Nylon Straight Blade Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$14.36/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5351-I
North Coast Part # 211759

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: Phosphor Bronze
  • Face Material: Thermoplastic Nylon
  • Color: Ivory
  • Strap Material: Galvanized Steel with Riveted Ground Contacts
  • Grounding Screw: Plated Steel
  • Terminal Screws: Plated Brass
  • Body Material: Thermoplastic Nylon
  • Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Face Material: Thermoplastic Nylon
  • NEMA: 5-20R
  • Feature 4: Smooth Face
  • Color: Ivory
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Heavy-Duty Industrial Specification Grade
  • Device Type: Single Receptacle Outlet
  • Body Material: Thermoplastic Nylon
  • Grounding: Self-Grounding

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Torque Range: 14-16 inch pounds
  • Termination: Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847713131
Item Long Description Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
GTiN 00078477131312
Warranty Length 10 yr
Size 46 H x 1.31 W x 16 D IN
Color Ivory
Operating Temperature -40 C
Voltage 125 Volt
Type Single Outlet,Straight Blade
Material Polybutylene/Thermoplastic
Applications For Commercial Use
Mounting Type Wall Box
Grade Heavy-Duty Industrial Specification
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Side Wired
Torque 14-16 lb-in
Horsepower 1 hp
Face Material Nylon
Body Material Thermoplastic Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Side Wired
Amperage 20 Amp
Dielectric Strength 2000 V
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Single Receptacle Outlet
Conductor Size 14-10 AWG
Contact Material Phosphor Bronze
Blade Dimensions 1.31 in W x 16 in D x 46 in H
