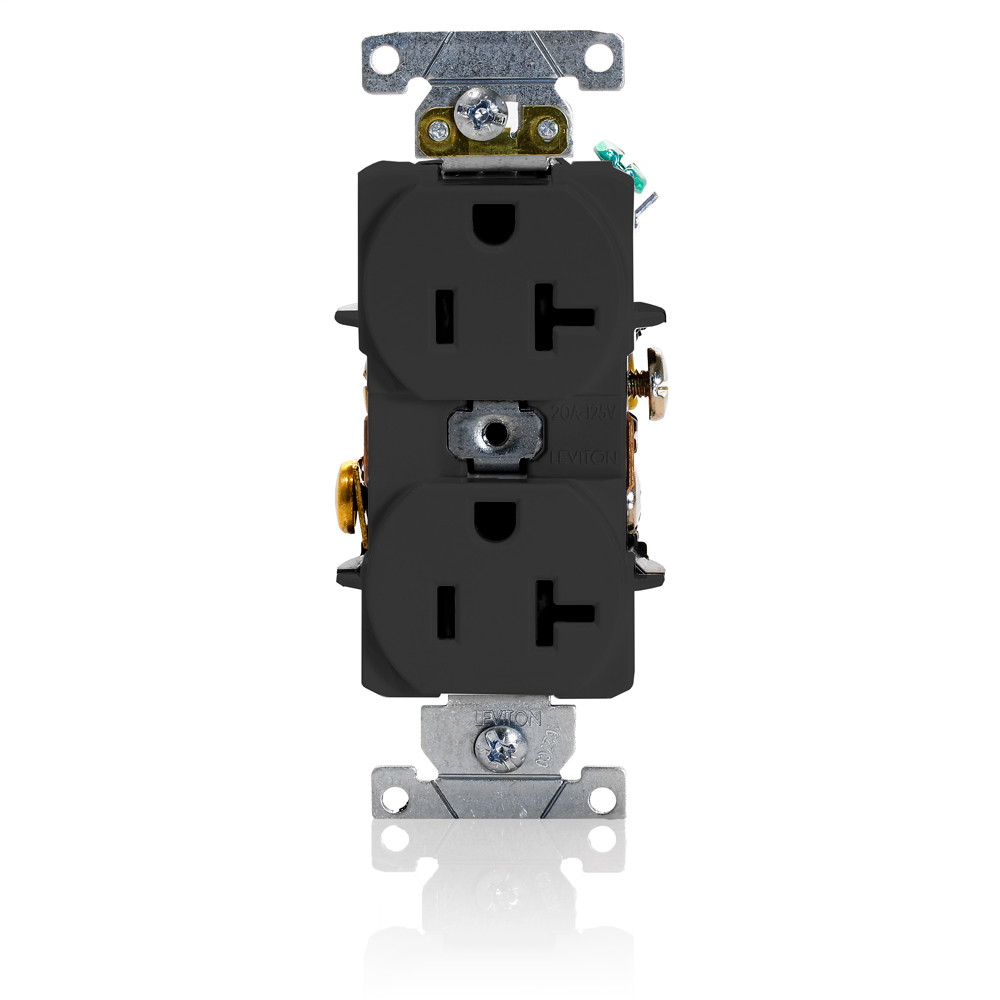

Leviton 5352-E 20 Amp 125 Volt NEMA 5-20R 2-Pole 3 Wire Heavy Duty Specification Grade Black Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$4.21/ea
In Stock | 250 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5352-E
North Coast Part # 211798

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: 0.030" Phosphor Bronze
  • Face Material: PBT Polyester Blend
  • Color: Black
  • Strap Material: Galvanized Steel with Riveted Ground Contacts
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Terminal Screws: #8 Triple-Drive Brass
  • Body Material: PBT Polyester Blend
  • Clamp Nuts: Steel (Galvanized G60)

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-1 & WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 3000V min
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Face Material: PBT Polyester Blend
  • NEMA: 5-20R
  • Feature 4: Smooth Face
  • Color: Black
  • Country Of Origin: Mexico
  • Grade: Heavy-Duty Industrial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Body Material: PBT Polyester Blend
  • Grounding: Self-Grounding

Mechanical Specifications

  • Terminal ID: Brass-Hot, Silver-Neutral, Green-Ground
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: #14-#10 AWG
  • Termination: Back and Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 75°C

Categories

Overview

UPC 07847781965
Item Long Description Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
GTiN 00078477819654
Warranty Length 10 yr
Size 46 H x 1.55 W x 1.12 D IN
Color Black
Operating Temperature -40 C
Voltage 125 Volt
Type Duplex Outlet,Straight Blade
Material Thermoplastic
Conductor Size 14 - 10 AWG
Applications Commercial
Mounting Type Wall Box
Grade Commercial
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Back and Side Wired
Horsepower 1 hp
Face Material Polyester
Body Material PBT Polyester Blend
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-1,WD-6
Number of Phases 1 Phase
Dielectric 3000 V
Flamability Class Rated V-0 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.55 in W x 1.12 in D x 46 in H
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
