Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5362-BSW
North Coast Part # 1342274

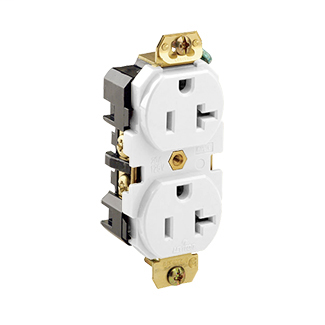

20 Amp, 125V, NEMA 5-20R, 2P 3W, Narrow Body Duplex Receptacle, Straight Blade, Industrial Extra Heavy Duty Spec Grade, Grounding, Ears Removed, Back & Side Wired -WHITE


UPC 07847762007
GTiN 00078477620076
Size 46 H x 1.53 W x 1.11 D IN
Color White
Voltage 125 Volt
Type Duplex Outlet,Straight Blade
Material Thermoplastic
Applications Industrial
Mounting Type Wall Box
Wire Size 14-10 AWG
Standard ANSI (C-73),CSA C22.2 No. 42 (File 152105),NEMA (WD-1, WD-6),NOM Certified (057),UL Fed Spec WC-596 (File E13399),UL Listed 498 (File E13399)
Connection Type Back And Side Wired
Horsepower 1 hp
Temperature Rating -40 To 60 C
Family Brand Name Leviton
NEMA 5-20R
Number of Phases 1 Phase
TC Connection Back and Side Wired
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
