Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5362-LGY
North Coast Part # 1094909


Material Specifications

  • Line Contacts: Phosphor Bronze
  • Grounding Leads: 6", #12 AWG THHN
  • Color: Gray
  • Cover Material: Nylon
  • Strap Material: Galvanized Steel with Riveted Ground Contacts
  • Wiring: 1 Hot Lead, 1 Neutral Lead, 1 Ground Lead
  • Bushing: Die Cast Aluminum
  • Base Material: Polycarbonate
  • Grounding Screw: 12GA THHN Green Wire Lead 6 Inch
  • Terminal Screws: 12GA THHN Wire Lead 6 Inch
  • Terminal Leads: 6", #12 AWG THHN
  • Mounting Screws: Triple Combination Head, Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • ANSI: C-73
  • UL 498: File E13399
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Maximum Working Voltage: 125V as rated
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding
  • Dielectric Voltage Withstand: 2000V minimum per UL 498

Product Features

  • NEMA: 5-20R
  • Feature 4: Smooth Face
  • Color: Gray
  • Country Of Origin: Mexico
  • Grade: Heavy-Duty Industrial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Termination: Pre-Wired Leads

Mechanical Specifications

  • Termination: Pre-Wired Leads
  • Product ID: Ratings are permanently marked on device
  • Terminal ID: Black-Hot, White-Neutral, Green-Ground
  • Lead Identification: Leads identified in accordance with UL 498 (black, white & green)

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C


UPC 07847725979

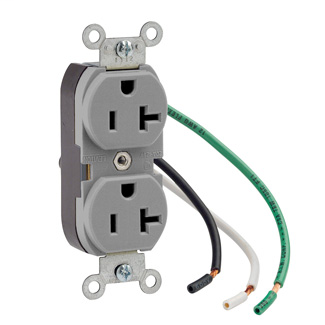

Item Long Description Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
GTiN 00078477259795
Warranty Length 10 yr
Size 46 H x 1.53 W x 1.11 D IN
Color Gray
Operating Temperature -40 C
Voltage 125 Volt
Type Pre-Wired Leads
Material Thermoplastic
Applications For Commercial
Mounting Type Wallbox
Grade Commercial
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Back and Side Wired
Horsepower 1 hp
Base Material Polycarbonate
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-6
Number of Phases 1 Phase
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 20 Amp
Dielectric Strength 2000 V
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Duplex Receptacle Outlet
Cover Material Nylon
Conductor Size 14-10 AWG
Blade Dimensions 46 in H x 1.53 in W x 1.11 in D
