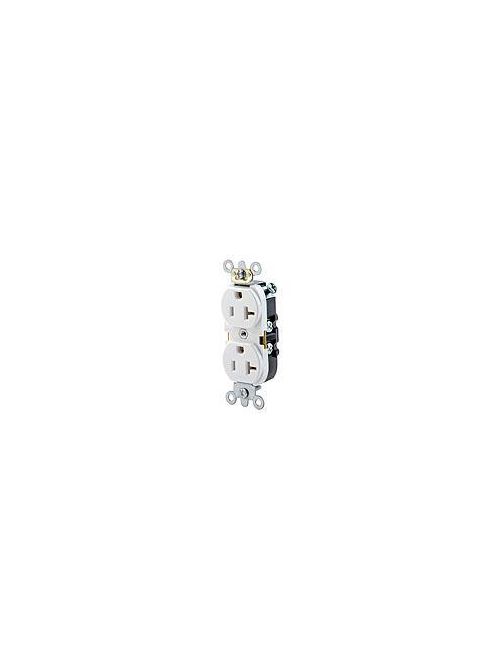

Leviton 5362-SW 125 Volt 20 Amp 2-Pole 3-Wire NEMA 5-20R White Thermoplastic Nylon Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5.14/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5362-SW
North Coast Part # 156681

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: Brass Triple-Wipe
  • Face Material: PBT
  • Terminal Screws: Brass 10-32
  • Strap Material: Steel
  • Grounding Screw: Steel 8-32
  • Body Material: PBT
  • Clamp Nuts: Galvanized Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-1 & WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self Grounding

Product Features

  • Color: White
  • Grade: Heavy-Duty Industrial Specification Grade
  • Country Of Origin: Mexico
  • NEMA: 5-20R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Torque Range: 14-16 inch pounds

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847714115
GTiN 00078477141151
Warranty Length 10 yr
Size 46 H x 1.33 W x 19 D IN
Color White
Operating Temperature 60 C
Voltage 125 Volt
Type Duplex Outlet,Straight Blade
Material Thermoplastic
Conductor Size 14-10 AWG
Applications Commercial
Mounting Type Wall Box
Grade Commercial
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Back and Side Wire
Torque 14-16 lb-in
Horsepower 1 hp
Face Material PBT
Body Material PBT
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-1,WD-6
Number of Phases 1
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.33 in W x 19 in D x 46 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
