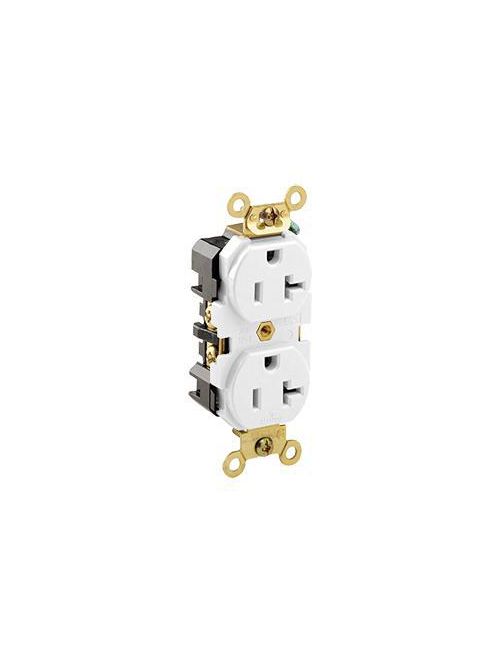

Leviton 5362-W 125 Volt 20 Amp 2-Pole 3-Wire NEMA 5-20R White Thermoplastic Nylon Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$14.66/ea
In Stock | 207 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5362-W
North Coast Part # 212783

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Brass Triple-Wipe
  • Face Material: Thermoplastic Nylon
  • Color: White
  • Strap Material: Brass
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Thermoplastic Nylon
  • Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-1 & WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 5-20R
  • Color: White
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Extra Heavy-Duty Industrial Specification Grade
  • Feature: Smooth Face
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back and Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C
> View Substitutes (1)

Overview

UPC 07847713952
GTiN 00078477139523
Finish Untreated
Warranty Length 10 yr
Size 46 H x 1.53 W x 1.11 D IN
Color White
Operating Temperature -40 C
Voltage 125 Volt
Type Outlet
Material Thermoplastic
Conductor Size 14-10 AWG
Applications Commercial Grade
Mounting Type Wallbox, Flush
Grade Industrial
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Back and Side Wire
Horsepower 1 hp
Face Material Nylon
Body Material Thermoplastic Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-1,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 33.7 mm W x 21.6 mm D x 103.2 mm H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
