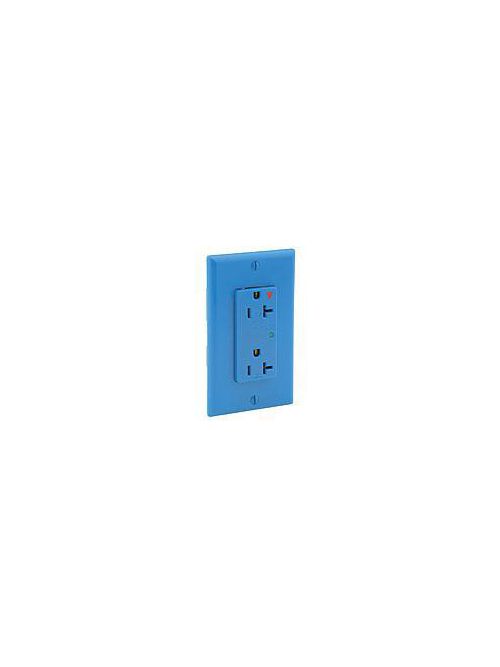

LEV 5380-IGB BU DUP REC 20A125V NON
Product image thumbnail 0
Product image thumbnail 1
$61.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5380-IGB
North Coast Part # 545812

Specifications

Material Specifications

  • Ground Clips: Brass-Plated Steel
  • Line Contacts: Brass Triple-Wipe
  • Face Material: Thermoplastic Nylon
  • Terminal Screws: Brass-Plated Steel
  • Shutter Mechanism: Delrin® Acetal
  • Grounding Screw: Brass-Plated Steel
  • Body Material: Thermoplastic Nylon
  • Yoke: Zinc-Plated Steel
  • Clamp Nuts: Zinc-Plated Steel

Warranty

  • Warranty: 5-Year Limited

Product Features

  • Function: Surge Protective Isolated Ground
  • Face Material: Thermoplastic Nylon
  • NEMA: 5-20R
  • Color: Blue
  • Brand: Decora Plus
  • Country Of Origin: Mexico
  • Grade: Commercial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Body Material: Thermoplastic Nylon

Standards and Certifications

  • ANSI: C-73
  • Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
  • NEMA: WD-6
  • NOM: 057

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Performance Data

  • Noise Rejection: -30dB at 500kHz-30MHz
  • Nominal Discharge Current Rating: 3kA
  • VPR: L-N: 600V, L-G: 700V, N-G: 600V
  • Diagnostics: Indicator Light
  • Short Circuit Current Rating: 5kA
  • Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
  • Joules Rating: 720
  • MCOV: 150V rms

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Torque Range: 14-16 inch pounds
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

videos

Overview

UPC 07847700930
GTiN 00078477009307
Warranty Length 5 yr
Size 3.81 H x 1.7 W x 1.47 D IN
Color Blue
Operating Temperature -40 C
Voltage 125 Volt
Type 3 SPD
Material Polycarbonate
Applications For Commercial Application
Mounting Type Box
Grade Commercial Specification
Country of Origin Mexico
Standard ANSI C-73
Connection Type Back and Side Wired
Torque 14-16 lb-in
Horsepower 1 hp
Face Material Nylon
Body Material Thermoplastic Nylon
Family Brand Name LEVITON
Wire Count 3
NEMA 5-20R,WD-6
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back Wired;Side Wired
Amperage 20 Amp
Short Circuit Current 5 kA
Environmental Conditions Flammability (Rated V-2 per UL94)
Number of Poles 2 Pole
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
Indicator Indicator Light
Sub Brand Decora Plus
Temperature Rating -40 to 60 C
Blade Dimensions 3.81 in H x 1.7 in W x 1.47 in D
