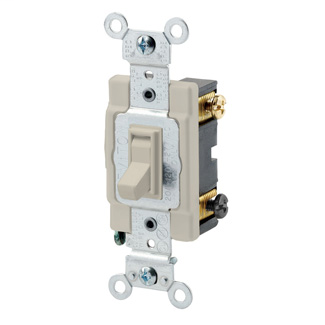

LEV 54503-2I 3W QUIET SWITCH PKD
Product image thumbnail 0
Product image thumbnail 1
$10.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 54503-2I
North Coast Part # 884808

Specifications

Material Specifications

  • Contacts: Silver-Cadmium .031 Thick
  • Color: Ivory
  • Cover Material: Nylon
  • Strap Material: Steel
  • Toggle: Polycarbonate
  • Base Material: PBT
  • Terminal Screws: Steel 8-32
  • Body Material: Thermoplastic
  • Actuator Material: Thermoplastic

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL Fed Spec WS896E: File #E7458
  • ANSI: C-73
  • UL Standard: UL 20
  • CSA C22.2 No. 111: File #152105

Electrical Specifications

  • Amperage: 15 A
  • Temperature Rise: Maximum 30 degrees C rise
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Max. Amperage: 12 Amp
  • Voltage: 120/277 VAC

Product Features

  • Function: 3-Way
  • Feature 3: Framed
  • Color: Ivory
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Commercial Specification Grade
  • Device Type: Toggle Switch
  • Voltage: 120/277 VAC
  • HP Rating: 1/2HP-120V 2HP-240V-277V
  • Warranty: 10-Year Limited
  • Actuator Material: Thermoplastic

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Stamped on Strap
  • Terminal Accom.: 14-12 AWG
  • Torque Range: 12-14 inch pounds
  • Termination: Side Wire

AC Horsepower Ratings

  • HP Rating: 1/2HP-120V 2HP-240V-277V

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 65°C

Categories

Overview

GTiN 00078477326206
Warranty Length 10 yr
Size 46 H x 1.31 W x 1.47 D IN
Color Ivory
Operating Temperature -40 C
Voltage 120/277 Volt
Type Toggle Switch
Applications Commercial
Mounting Type Box
Grade Commercial Specification
Standard ANSI C-73
Connection Type Side Wired
Torque 12-14 lb-in
Horsepower 1/2 hp
Base Material PBT
Body Material Thermoplastic
Toggle Material Polycarbonate
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 1500 V
Flamability Class Rated V-2 Per UL 94
Contact Material Silver-Cadmium
TC Connection Side Wired
Actuator Toggle
Amperage 15 Amp
Max Current 12 A
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 3 Pole
Temperature Rise 30 C
Device Type Toggle Switch
Cover Material Nylon
Product UPC 07847732620
