LEV 5500-20L PDUSUR HORZ 120V1PH 20

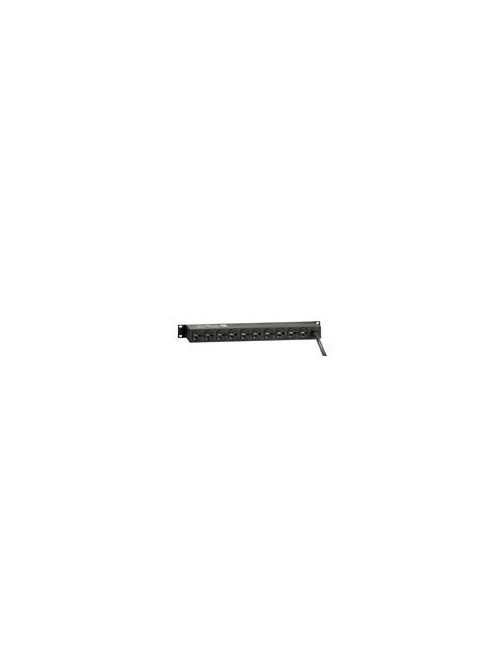

Product image thumbnail 0

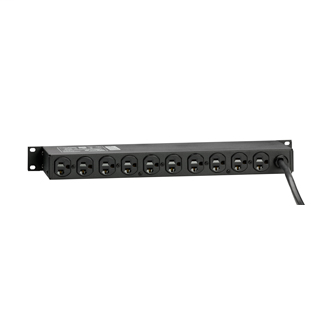

Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5500-20L
North Coast Part # 1348288


  • Resettable circuit breaker protects against overloading
  • 12 receptacles: 10 in back, 2 in front
  • 20-amp versions available with either straight blade or locking input plug
  • LED diagnostics for power, protection, and outlet polarity/ground status


Product Features

  • Amperage: 20 A
  • Product Type: Basic PDU w/Surge
  • Series: 5500/5505 Series
  • Country Of Origin: Mexico
  • Plug Type: L5-20P
  • Voltage: 120 VAC
  • Configuration: Rack Mount


UPC 07847702920
Item Long Description Horizontal Rack Mount Surge Protective Power Distribution Unit 20A On/Off Switch NEMA L5-20P Locking Plug 12 Outlets, Black
GTiN 00078477029206
Length 19 in
Width 4.550 in
Operating Temperature -10 To 60 C
Type Staged-Multi Component Series, Type 4 SPD
Product Type Basic PDU W/Surge
Circuit Type Staged-Multi Component Series
Applications For Rack-Mounted Electronic Equipments
Mounting Type Rack
Height 1.75 in
Country of Origin Mexico
Standard ANSI\UL 1449 Surge Protective Devices,Type 4 SPD Evaluated For Use In Type 3 Applications (E317603),UL 1363 Relocatable Power Taps,UL Recognized Component,UL Recognized Component (E118936)
Input Voltage 120 V
Family Brand Name LEVITON
Amperage 20 Amp
Cable Length 12 FT
Environmental Conditions -10 to -35 C
Output Voltage 120 V
Operating Frequency 50/60 Hz
Enclosure Painted Steel
Plug Type L5-20P
Finish Painted
Material Steel
Temperature Rating 0 - 40 C
Enclosure Type NEMA 5-20R, L5-20P
Blade Dimensions 19 in L x 4.55 in W x 1-3/4 in H
