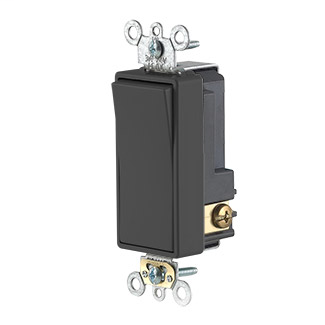

LEV 56021-2E 3A-24V SP DECORA PLS S
Product image thumbnail 0
Product image thumbnail 1
$33.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 56021-2E
North Coast Part # 1009089

Specifications

Material Specifications

  • Contacts: Silver-Alloy
  • Terminal Screws: Brass
  • Strap Material: Steel
  • Base Material: Polyester
  • Body Material: Thermoplastic
  • Frame Material: Polycarbonate
  • Actuator Material: Polycarbonate

Mechanical Specifications

  • Termination: Back or Side Wire

Product Features

  • Function: Single-Pole
  • Color: Black
  • Brand: Decora Plus
  • Country Of Origin: Mexico
  • Grade: Commercial Specification Grade
  • Device Type: Rocker Switch

Electrical Specifications

  • Amperage: 3 A
  • Voltage: 36 VAC/VDC
  • Grounding: Self-Grounding

Environmental Specifications

  • Flammability: UL94V-2
  • Operating Temperature: -40°C to 65°C

Overview

UPC 07847770245
Item Long Description 3 Amp. 24 Volt AC/DC. Switch Decora Plus Quiet Rocker. Low Voltage Single Pole. Commercial Grade. Side and Back Wired. 10-Year Limited Warranty v BLACK
GTiN 00078477702451
Color Black
Operating Temperature -40 C
Voltage 24 Volt
Type Switch
Applications Commercial
Grade Commercial Specification
Country of Origin Mexico
Base Material Polyester
Body Material Thermoplastic
Family Brand Name Leviton
Flamability Class Rated V-2 Per UL94
Grounding Self-Grounding
Contact Material Silver-Alloy
Amperage 3 Amp
Number of Poles 1 Pole
Device Type Rocker Switch
