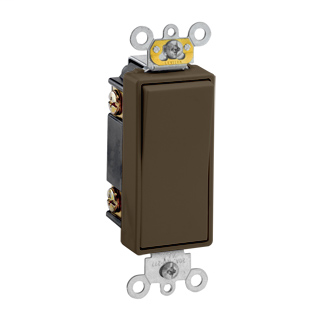

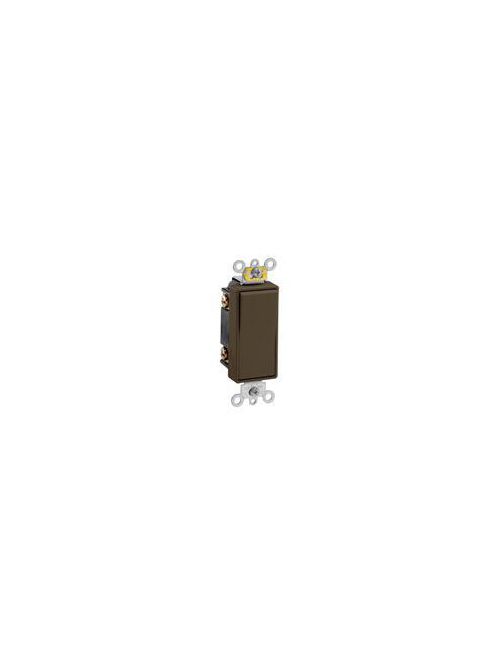

Leviton 5623-2 20 Amp 120/277 Volt Decora Plus Rocker 3-Way Commercial Spec Grade Self Grounding Brown AC Quiet Switch
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5623-2
North Coast Part # 672258


Mechanical Specifications

  • Termination: Back or Side Wire

Electrical Specifications

  • Amperage: 20 A
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding

Product Features

  • Amperage: 20 A
  • Function: 3-Way
  • Warranty: 10-Year Limited
  • HP Rating: 1HP-120V 2HP-240V-277V
  • Color: Brown
  • Brand: Decora Plus
  • Strap Material: Steel
  • Country Of Origin: Mexico
  • Grade: Commercial Specification Grade
  • Device Type: Rocker Switch
  • Body Material: Thermoplastic
  • Standards and Certifications: UL/CSA
  • Max. Amperage: 16 Amp
  • Grounding: Self-Grounding
  • Termination: Back or Side Wire
  • Actuator Material: Thermoplastic
  • Voltage: 120/277 VAC


UPC 07847751920
GTiN 00078477519202
Warranty Length 10 yr
Size 46 H x 1.76 W x 1.60 D IN
Color Brown
Operating Temperature -40 To 120 C
Voltage 120/277 Volt
Type Rocker Switch
Material Thermoplastic Actuator, Steel Strap
Applications Commercial
Mounting Type Box
Grade Commercial Specification
Country of Origin Mexico
Standard CSA,UL
Connection Type Back Wired,Side Wired
Horsepower 1 hp
Body Material Thermoplastic
Temperature Rating -40 to 120 C
Family Brand Name Leviton
Grounding Self-Grounding
TC Connection Back and Side Wired
Actuator Rocker
Amperage 20 Amp
Max Current 16 A
Blade Dimensions 1.76 in W x 1.6 in D x 46 in H
Environmental Conditions Flammability (Rated V-2 per UL94)
Contact Rating 20 A, 120/277 VAC
Number of Poles 1 Pole
Device Type Rocker Switch
Sub Brand Decora Plus
