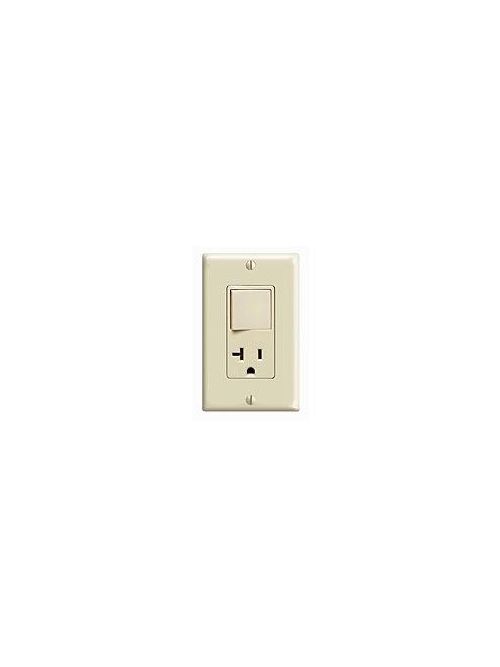

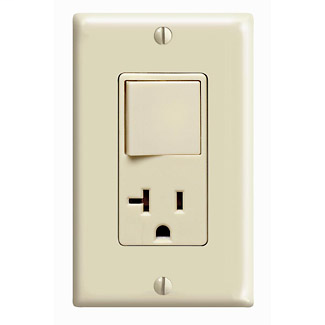

Leviton 5636-I 120 Volt 20 Amp 1-Pole NEMA 5-20R 1 Hp Ivory Thermoplastic Grounding Decorator Combination Switch and Receptacle
Product image thumbnail 0
Product image thumbnail 1
$39.41/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5636-I
North Coast Part # 1019083

Specifications

Product Features

  • Amperage: 20 A
  • Warranty: 2-Year Limited
  • Voltage: 120 VAC
  • HP Rating: 1HP-120V 2HP-240V
  • Color: Ivory
  • Standards and Certifications: UL/CSA
  • Strap Material: Steel
  • Country Of Origin: Mexico
  • Feature: Single-Pole / 5-20R
  • Body Material: Thermoplastic
  • Max. Amperage: 16 Amp
  • Grounding: Grounding
  • Termination: Side
  • Product Type: Switch/Outlet Combo
  • Type: Decora Combination Switch
  • Actuator Material: Thermoplastic
  • NEMA: 5-20R

videos

Overview

UPC 07847788467
GTiN 00078477884676
Warranty Length 2 yr
Size 4.20 H x 1.31 W x 0.93 D IN
Color Ivory
Operating Temperature -40 To 120 C
Voltage 120 Volt
Type Decora Combination Switch
Material Thermoplastic
Product Type Switch/Outlet Combo
Applications Commercial
Mounting Type Wallplate
Country of Origin Mexico
Standard CSA,UL
Connection Type Side Wired
Horsepower 1 hp
Body Material Thermoplastic
Family Brand Name Leviton
NEMA 5-20R
Grounding Grounding
TC Connection Side Wired
Actuator Rocker
Amperage 20 Amp
Max Current 16 A
Environmental Conditions Flammability (Rated V-2 per UL94)
Contact Rating 120 V
Number of Poles 1 Pole
Sub Brand Decora
