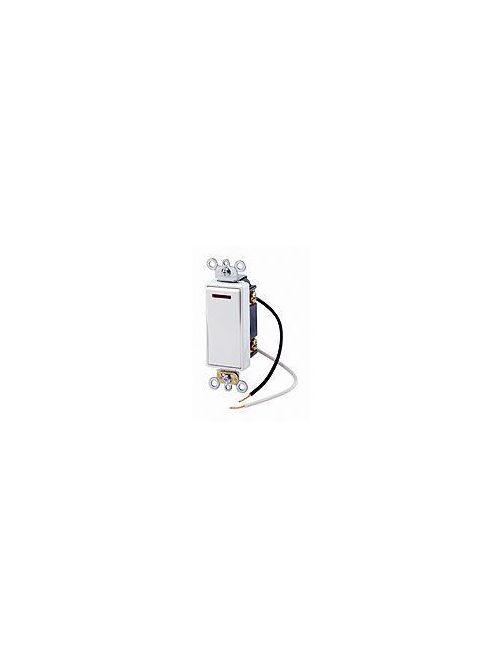

Leviton 5639-2W 20 Amp 277 Volt Decora Plus Rocker Pilot Light Illuminated ON 3-Way White AC Quiet Switch
Product image thumbnail 0
Product image thumbnail 1
$27.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5639-2W
North Coast Part # 1830441

Specifications

Material Specifications

  • Color: White
  • Body Material: Thermoplastic Polyester
  • Strap Material: Steel
  • Actuator Material: Thermoplastic

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • UL Standard: UL 20
  • CSA C22.2 No. 111: File #152105

Electrical Specifications

  • Amperage: 20 A
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Temperature Rise: Maximum 30 degrees C rise
  • Endurance: 50,000 cycles minimum
  • Voltage: 277 VAC
  • Grounding: Self-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Function: 3-Way
  • Color: White
  • Brand: Decora Plus
  • Country Of Origin: Mexico
  • Feature: Illuminated - Load ON (Pilot Light)
  • Device Type: Rocker Switch
  • Grade: Commercial Specification Grade

Mechanical Specifications

  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
  • Product ID: Stamped on Strap
  • Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
  • Torque Range: 12-14 inch pounds
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • Max. Amperage: 16 Amp
  • HP Rating: 1HP-120V

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 65°C

Overview

UPC 07847778908
GTiN 00078477789087
Warranty Length 10 yr
Size 46 H x 1.76 W x 1.60 D IN
Color White
Operating Temperature -40 C
Voltage 277 Volt
Type 3-Way
Material Thermoplastic, Steel Strap
Applications For Commercial use
Mounting Type Box
Grade Commercial Specification
Country of Origin Mexico
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Torque 12-14 lb-in
Horsepower 1 hp
Body Material Thermoplastic Polyester
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 1500 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Actuator Rocker
Amperage 20 Amp
Max Current 16 A
Environmental Conditions Flammability (Rated V-2 per UL94)
Contact Rating 20 A
Number of Poles 1 Pole
Temperature Rise 30 C
Device Type Rocker Switch
Indicator Pilot Light
Sub Brand Decora Plus
Temperature Rating -40 to 120 C
Blade Dimensions 1.76 in W x 1.6 in D x 46 in H
