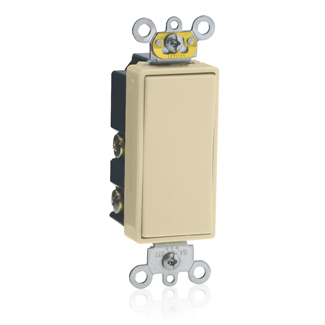

Leviton 5657-2I 120/277 VAC 15 Amp SPDT 2 Hp Ivory Thermoplastic Self Grounding Momentary Contact Rocker Quiet Switch
Product image thumbnail 0
Product image thumbnail 1
$53.11/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5657-2I
North Coast Part # 159097

Specifications

Material Specifications

  • Color: Ivory
  • Body Material: Thermoplastic
  • Strap Material: Steel
  • Actuator Material: Thermoplastic

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • UL Standard: UL 20
  • CSA C22.2 No. 111: File #152105

Electrical Specifications

  • Amperage: 15 A
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Temperature Rise: Maximum 30 degrees C rise
  • Endurance: 30,000 cycles minimum
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Function: Single-Pole Double-Throw
  • HP Rating: 1/2HP-120V 2HP-240V-277V
  • Color: Ivory
  • Brand: Decora Plus
  • Country Of Origin: Mexico
  • Feature: Momentary Contact CTR OFF
  • Device Type: Rocker Switch
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding
  • Grade: Commercial Specification Grade

Mechanical Specifications

  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
  • Product ID: Stamped on Strap
  • Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
  • Torque Range: 12-14 inch pounds
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • Max. Amperage: 12 Amp
  • HP Rating: 1/2HP-120V 2HP-240V-277V

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 65°C

Overview

UPC 07847778966
GTiN 00078477789667
Warranty Length 10 yr
Size 46 H x 1.30 W IN
Color Ivory
Operating Temperature -40 C
Voltage 120/277 Volt
Type Rocker Switch
Material Thermoplastic
Applications Commercial
Mounting Type Box
Grade Commercial Specification
Country of Origin Mexico
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Torque 12-14 lb-in
Horsepower 1/2 hp
Body Material Thermoplastic
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 1500 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back Wired;Side Wired
Actuator Rocker
Amperage 15 Amp
Max Current 12 A
Environmental Conditions Flammability (Rated V-2 per UL94)
Contact Rating 120/277 V
Number of Poles 1 Pole
Temperature Rise 30 C
Device Type Rocker Switch
Action SPDT
Sub Brand Decora Plus
