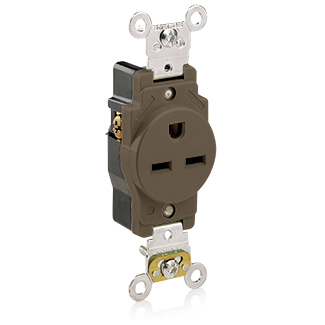

Leviton 5661 15 Amp 250 Volt NEMA 6-15R 2-Pole 3 Wire Heavy Duty Specification Grade Brown Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
$22.81/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5661
North Coast Part # 1014346

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: Brass Triple-Wipe
  • Face Material: Thermoplastic Nylon
  • Terminal Screws: Plated Brass
  • Strap Material: Zinc-Plated Steel
  • Grounding Screw: Plated Steel
  • Body Material: Thermoplastic Nylon
  • Clamp Nuts: Galvanized Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 250 VAC
  • Grounding: Self-Grounding

Product Features

  • Face Material: Thermoplastic Nylon
  • NEMA: 6-15R
  • Feature 4: Smooth Face
  • Color: Brown
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Heavy-Duty Industrial Specification Grade
  • Device Type: Single Receptacle Outlet
  • Body Material: Thermoplastic Nylon
  • Grounding: Self-Grounding

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Torque Range: 14-16 inch pounds
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1-1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847713041
GTiN 00078477130414
Warranty Length 10 yr
Size 46 H x 1.31 W x 16 D IN
Color Brown
Operating Temperature -40 C
Voltage 250 Volt
Type 1-Outlet, 1-Unit
Material Thermoplastic
Conductor Size 14-10 AWG
Applications Heavy Duty (in Aaccordance with VDE)
Mounting Type Screw, Wall Box, Flush
Grade Industrial/Commercial
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Back and Side Wire
Torque 14-16 lb-in
Horsepower 1-1/2 hp
Face Material Nylon
Body Material Thermoplastic Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 6-15R,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Blade Dimensions 33.7 mm W x 26.9 mm D x 103.2 mm H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Single Receptacle Outlet
