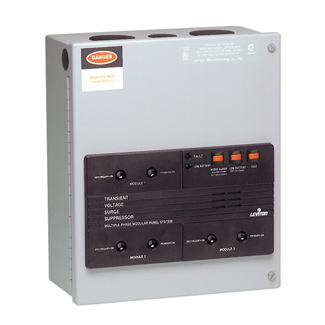

LEV 57120-M3 TVSS 3PH5W W/O CTR 120

Specifications

Warranty

• Warranty: Limited Lifetime

Product Features

• Replaceable Modules: Yes
• Warranty: 5-Year Limited
• Standards and Certifications: UL1449 / CSA / ANSI/IEEE
• Surge Counter: No
• Country Of Origin: Mexico

Standards and Certifications

• ANSI/IEEE Category A, B & C: C-62.41 & 62.45
• UL1449 3rd Edition: CSA Certified and UL Listed Type 2

Performance Data

• Noise Rejection: -20 to -40 dB at 5kHz-10MHz
• Protection Mode: 4-Mode
• Nominal Discharge Current Rating: 20kA
• VPR: L-N:1000V, L-G:1500V, N-G:800V , L-L:1500V
• Short Circuit Current Rating: 100kA
• Maximum Surge Current, Per Mode (Per Phase): 150kA (300kA)
• MCOV: L-N:150V, L-G:300V, N-G:150V, L-L:300V

Mechanical Specifications

• Diagnostics: Real Time Protection status LEDs & Audible Alarm
• Surge Counter: No
• Remote Monitoring: Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
• Connection Type: Parallel-hardwired, feed-through dual wire terminal block: Accepts up to #3 AWG wire

Electrical Specifications

• Surge Technology: 40mm MOV Design
• Recommended Circuit Breaker Rating: 30A, 120V
• Frequency: 50/60Hz
• Voltage Configuration: 120/208 V, 3-Phase WYE

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -20⁰C to 40⁰C
• Storage Temperature: -4°F to 185°F (-20°C to 85°C)
• Enclosure: Type 12
• Relative Humidity: 5% to 95% non-condensing
