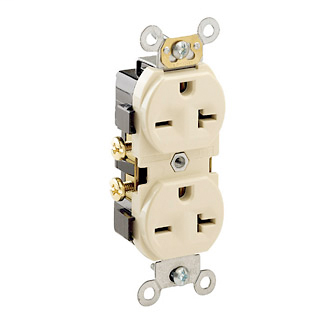

LEV 5822-ICP DUPLEX RECEPT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$21.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5822-ICP
North Coast Part # 1342275

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Brass Double Wipe .031 Thick
  • Face Material: Nylon
  • Terminal Screws: Brass 8-32
  • Grounding Screw: Brass 8-32
  • Body Material: Thermoplastic
  • Yoke: Zinc-Plated Steel

Standards and Certifications

  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-2 WD-6

Electrical Specifications

  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Current Limiting: Full Rated Current
  • Dielectric Voltage: Withstands 2000V per UL498

Product Features

  • Amperage: 20 A
  • Warranty: 10-Year Limited
  • Face Material: Nylon
  • NEMA: 6-20R
  • Color: Ivory
  • Standards and Certifications: UL/CSA
  • Strap Material: Steel
  • Country Of Origin: United States
  • Pole: 2
  • Body Material: Thermoplastic
  • Wire: 3
  • Voltage: 250 VAC
  • Grounding: Self Grounding
  • Termination: Side

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, White-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG

AC Horsepower Ratings

  • At Rated Voltage: 2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847745848
Item Long Description Levitons line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
GTiN 00078477458488
Warranty Length 10 yr
Size 46 H x 1.56 W x 19 D IN
Color Ivory
Operating Temperature -40 C
Voltage 250 Volt
Type Duplex Outlet,Straight Blade
Material Thermoplastic
Applications Commercial
Mounting Type Wall Box
Country of Origin USA
Wire Size 14-10 AWG
Standard ANSI C-73,CSA,UL
Connection Type Side Wired
Horsepower 2 hp
Face Material Nylon
Body Material Thermoplastic
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 6-20R,WD-2,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Side Wired
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
