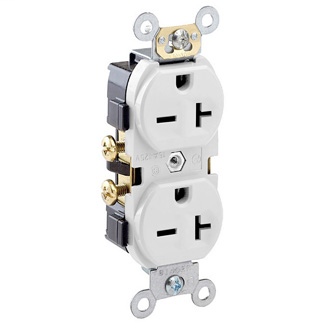

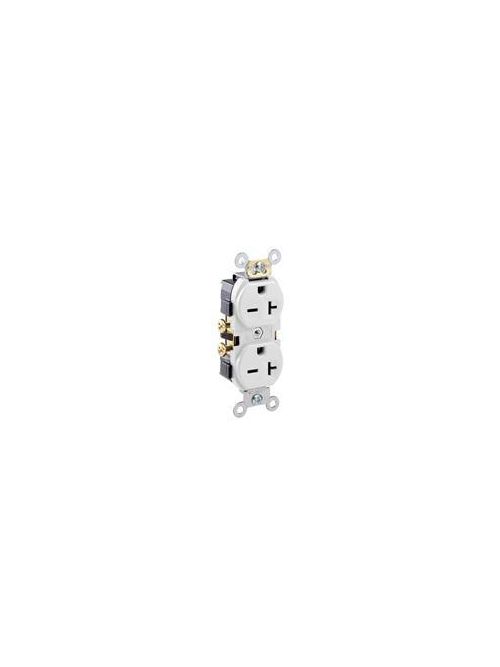

Leviton 5822-W 20 Amp 250 Volt NEMA 6-20R 2-Pole 3 Wire Narrow Body Straight Blade Commercial Grade White Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$20.47/ea
In Stock | 11 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5822-W
North Coast Part # 10147

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Brass Double Wipe .031 Thick
  • Face Material: Nylon
  • Color: White
  • Strap Material: Zinc-Plated Steel
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 8-32
  • Body Material: Nylon

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-2 WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 250 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 6-20R
  • Feature 4: Indented Face
  • Color: White
  • Country Of Origin: United States
  • Grade: Commercial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Body Material: Nylon
  • Grounding: Self-Grounding

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847779043
GTiN 00078477790434
Finish Matte
Warranty Length 10 yr
Size 46 H x 1.56 W x 19 D IN
Color White
Operating Temperature -40 C
Voltage 250 Volt
Type Outlet
Material Thermoplastic
Conductor Size 14-10 AWG
Applications Commercial Grade
Mounting Type Wallbox, Flush
Grade Industrial
Country of Origin USA
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Side Wire
Horsepower 2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 6-20R,WD-2,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Side Wired
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 39.5 mm W x 27.6 mm D x 103.2 mm H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Duplex Receptacle Outlet
