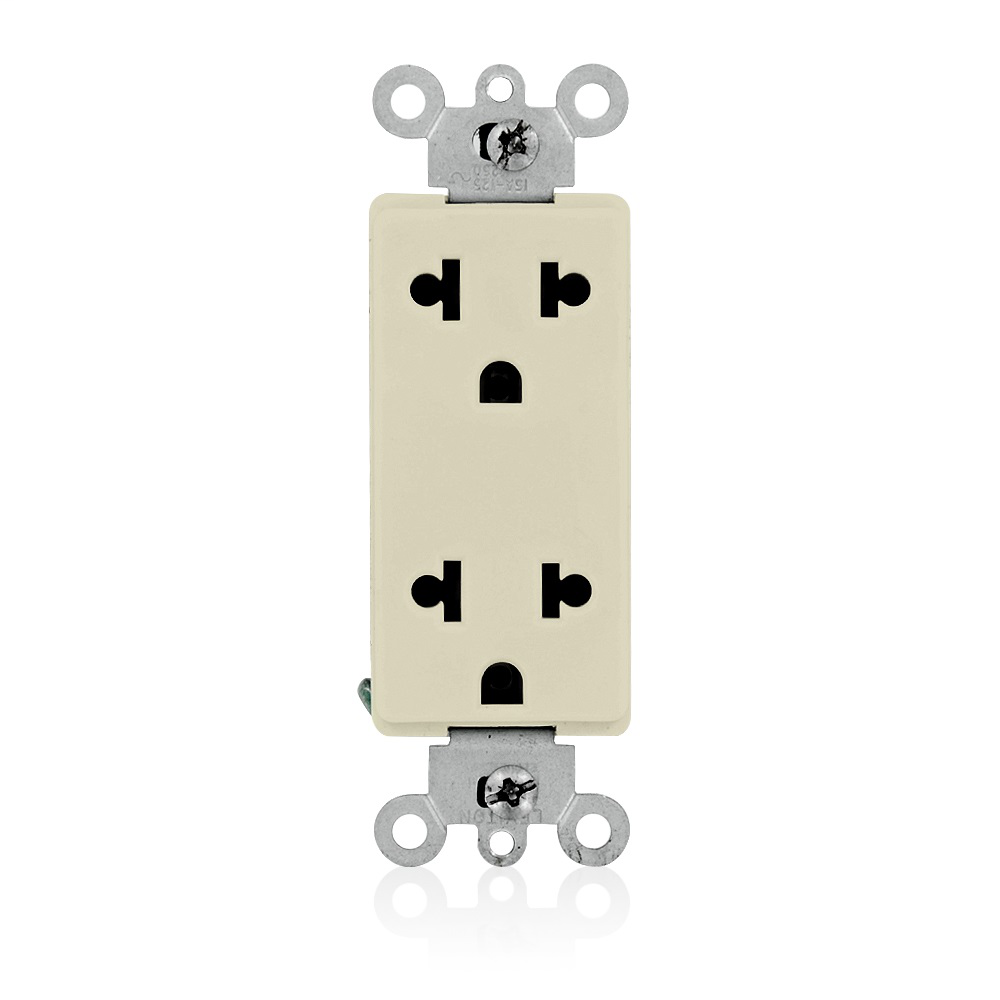

LEV 5825-I UNIV DECR DPLX RCPT
Product image thumbnail 0
Product image thumbnail 1
$6.44/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5825-I
North Coast Part # 675651

Specifications

Material Specifications

  • Line Contacts: Brass Triple-Wipe .031 Thick
  • Face Material: Thermoplastic Nylon
  • Color: Ivory
  • Strap Material: Zinc Plated Steel
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Thermoplastic Nylon
  • Clamp Nuts: Zinc Plated Steel

Warranty

  • Warranty: 10-Year Limited

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 1500 V per UL498
  • NEMA: 5-15R
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125/250 VAC

Product Features

  • Color: Ivory
  • Country Of Origin: Mexico
  • NEMA: 5-15R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847702051
Item Long Description Leviton has combined the two most popular configurations, a NEMA 5-15 and CEE 7/16 1-15 plug. This two-pin plug is probably the single most widely used international plug, popularly known as the Europlug. The plug is unearthed and has two round, 4 mm pins, which usually converge slightly. It can be inserted into any socket that accepts 4 mm round contacts spaced 19 mm apart. It is described in CEE 7/16 and is also defined in Italian standard CEI 23-5 and Russian standard GOST 7396. The Europlug is used in Class II applications throughout continental Europe (Germany, Austria, Switzerland, Italy, Greece, the Netherlands, Belgium, France, Spain, Portugal, Denmark, Norway, Sweden, Finland, Poland, The Czech Republic, Slovakia, Hungary, Romania, Bulgaria, Lithuania). It is also used in Turkey, the Middle East, and most of Africa and South America (Brazil), as well as the former Soviet republics, and many developing nations. The plug is intended for use with devices that require 2.5 A or less. Because it can be inserted in either direction into the socket, live and neutral are connected at random.
GTiN 00078477020517
Warranty Length 10 yr
Color Ivory
Operating Temperature -40 C
Voltage 125 Volt
Type Duplex Outlet,Straight Blade-Euro Plug Combo
Material Thermoplastic
Applications Commercial
Mounting Type Wall Box
Country of Origin Mexico
Wire Size 14-10 AWG
Standard CSA Certified (File LR-406),NOM Certified (057),UL Listed (File E13399)
Connection Type Back And Side Wired
Horsepower 1/2 hp
Face Material Nylon
Body Material Thermoplastic Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R
Number of Phases 1 Phase
Dielectric 1500 V
Flamability Class Rated V-2 Per UL 94
TC Connection Back and Side Wired
Amperage 15 Amp
Dielectric Strength 1500 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Sub Brand Decora Plus
