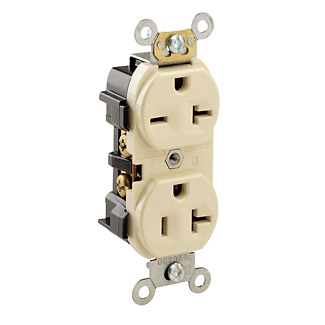

LEV 5844-I 5-20R 6-20R IND GRD COMB

Specifications

Material Specifications

• Ground Clips: Brass-Plated
• Line Contacts: Brass Triple-Wipe .031 Thick
• Face Material: Nylon
• Color: Ivory
• Strap Material: Zinc-Plated Steel
• Grounding Screw: Brass 8-32
• Terminal Screws: Brass 10-32
• Body Material: Nylon
• Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

• Warranty: 10-Year Limited
• NOM: 057
• CSA C22.2 No. 42: File 152105
• UL498: File E13399
• ANSI: C-73
• UL Fed Spec WC-596: File E13399
• NEMA: WD-2 WD-6

Electrical Specifications

• Amperage: 20 A
• Wire: 3
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Pole: 2
• Current Limiting: Full Rated Current
• Voltage: 125/250 VAC
• Grounding: Self-Grounding

Product Features

• Feature 3: Dual Voltage
• NEMA: 5-20R_6-20R
• Feature 4: Indented Face
• Color: Ivory
• Country Of Origin: Mexico
• Grade: Commercial Specification Grade
• Device Type: Duplex Receptacle Outlet
• Grounding: Self-Grounding

Mechanical Specifications

• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Termination: Back or Side Wire

AC Horsepower Ratings

• At Rated Voltage: 1 HP 125V / 2 HP 250V

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C
