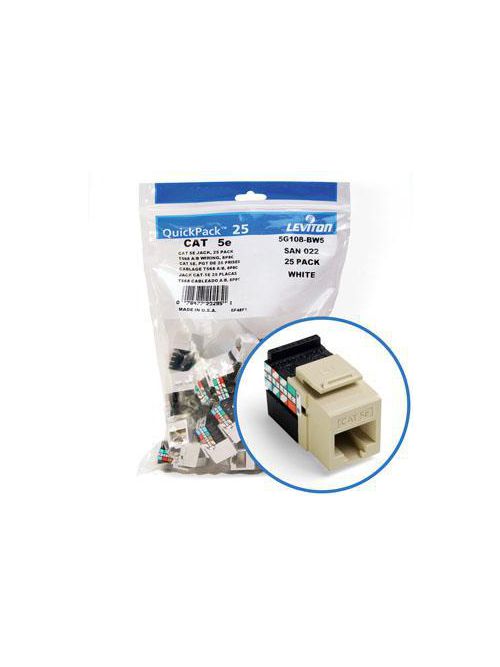

Leviton 5G108-BI5 Category 5E Ivory Plastic 1-Piece Channel Rated UTP Jack Connector
Product image thumbnail 0
Product image thumbnail 1
$149.61/ea
Usually ships within 11 to 17 Days
bg
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5G108-BI5
North Coast Part # 345912

Specifications

Material Specifications

  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Body Material: High-Impact Fire-Retardant Plastic
  • Body Color: Ivory
  • Contact Base Material: Phosphor Bronze
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated

Mechanical Specifications

  • Connector Feature: Channel-Rated
  • Wiring Standard: T568A T568B
  • Position / Conductor: 8P8C
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Product ID: Permanently laser-engraved
  • Termination Type: 110 Punchdown
  • Style Name: GigaMax

Performance Specifications

  • Module Type: Category 5e

Standards and Certifications

  • ACA: Compliant
  • CSA: Certified
  • NEC: Article 800 Compliant
  • UL: cULus Listed
  • FCC: Part 68 Compliant
  • TIA/EIA: TIA-568-B

Product Features

  • Warranty: 1 Year Limited
  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Connector Feature: Channel-Rated
  • Body Color: Ivory
  • Shielding: UTP
  • Flammability: Rated V-0 per UL 94
  • Color: Ivory
  • Position / Conductor: 8P8C
  • Brand: GigaMax
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Country Of Origin: United States
  • Packaging: QuickPack 25/bag
  • Module Type: Category 5e
  • Category Rating: Cat 5e
  • Module Style: Connector
  • Termination Type: 110 Punchdown
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
  • Ordering Notes: Bulk Package of 25
  • Contact Base Material: Phosphor Bronze
  • Standards and Certifications: TIA/EIA cULus Listed

videos

Categories

Overview

UPC 07847720293
GTiN 00078477202937
Warranty Length 1 yr
Size 0.89 H x 0.64 W x 1.17 D IN
Color Ivory
Type CAT 5e Quickport Connector
Applications Commercial
Mounting Type Panel,Wallplate
Country of Origin USA
Style GigaMax
Standard EIA,TIA,cULus Listed
Body Material High-Impact Fire-Retardant Plastic
Contact Type 8P8C
Pkg Qty 25
Family Brand Name Leviton
Flamability Class Rated V-0 Per UL 94
Contact Material Phosphor Bronze
Environmental Conditions Flammability (Rated V-0 per UL94)
Category Type CAT 5e
Sub Brand QuickPort;QuickPack;GigaMax
