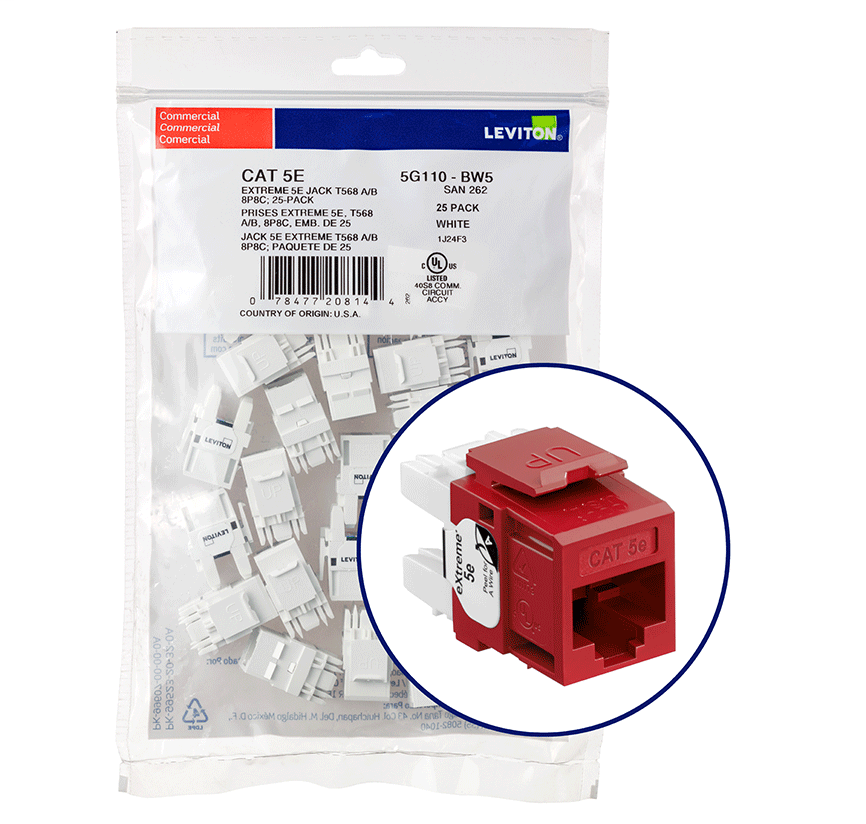

LEV 5G110-BR5 JACK EXTREME 5E 25PK
$188.59/ea
Usually ships within 11 to 17 Days
bg
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5G110-BR5
North Coast Part # 424852

Specifications

Material Specifications

  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Body Material: High-Impact Fire-Retardant Plastic
  • Body Color: Dark Red
  • Contact Base Material: Phosphor Bronze
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated

Mechanical Specifications

  • Connector Feature: Channel/Component Rated
  • Wiring Standard: T568A T568B
  • Position / Conductor: 8P8C
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Product ID: Permanently laser-engraved
  • Termination Type: 110 Punchdown
  • Style Name: eXtreme

Performance Specifications

  • Module Type: Category 5e

Standards and Certifications

  • ACA: Compliant
  • ISO/IEC: 11801
  • CSA: Certified
  • NEC: Article 800 Compliant
  • UL: cULus Listed
  • FCC: Part 68 Compliant
  • TIA/EIA: TIA-568-B

Product Features

  • Warranty: 1 Year Limited
  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Connector Feature: Channel/Component Rated
  • Body Color: Dark Red
  • Shielding: UTP
  • Flammability: Rated V-0 per UL 94
  • Color: Red
  • Position / Conductor: 8P8C
  • Brand: eXtreme
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Country Of Origin: United States
  • Packaging: QuickPack 25/bag
  • Module Type: Category 5e
  • Category Rating: Cat 5e
  • Module Style: Connector
  • Termination Type: 110 Punchdown
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
  • Ordering Notes: Bulk Package of 25
  • Contact Base Material: Phosphor Bronze
  • Standards and Certifications: TIA/EIA cULus Listed

videos

Categories

Overview

UPC 07847720818
GTiN 00078477208182
Warranty Length 1 yr
Size 0.89 H x 0.64 W x 1.21 D IN
Color Dark Red
Type Fire-Retardant
Applications For Commercial
Mounting Type Wallplate, Panel
Cable Type Category 5e+
Country of Origin USA
Style EXtreme
Standard EIA,TIA,cULus Listed
Body Material High-Impact Fire-Retardant Plastic
Contact Type 8P8C
Pkg Qty 25
Family Brand Name Leviton
Flamability Class Rated V-0 Per UL 94
Contact Material High Quality Copper-based Alloy Plated With 50 Micro-inches Of Gold Over 100 Micro-inches Of Nickel
Blade Dimensions 0.64 in W x 1.21 in D x 0.89 in H
Environmental Conditions Flammability (Rated V-0 per UL94)
Number of Positions 8
Category Type CAT 5e
Sub Brand Extreme, GigaMax, QuickPort
