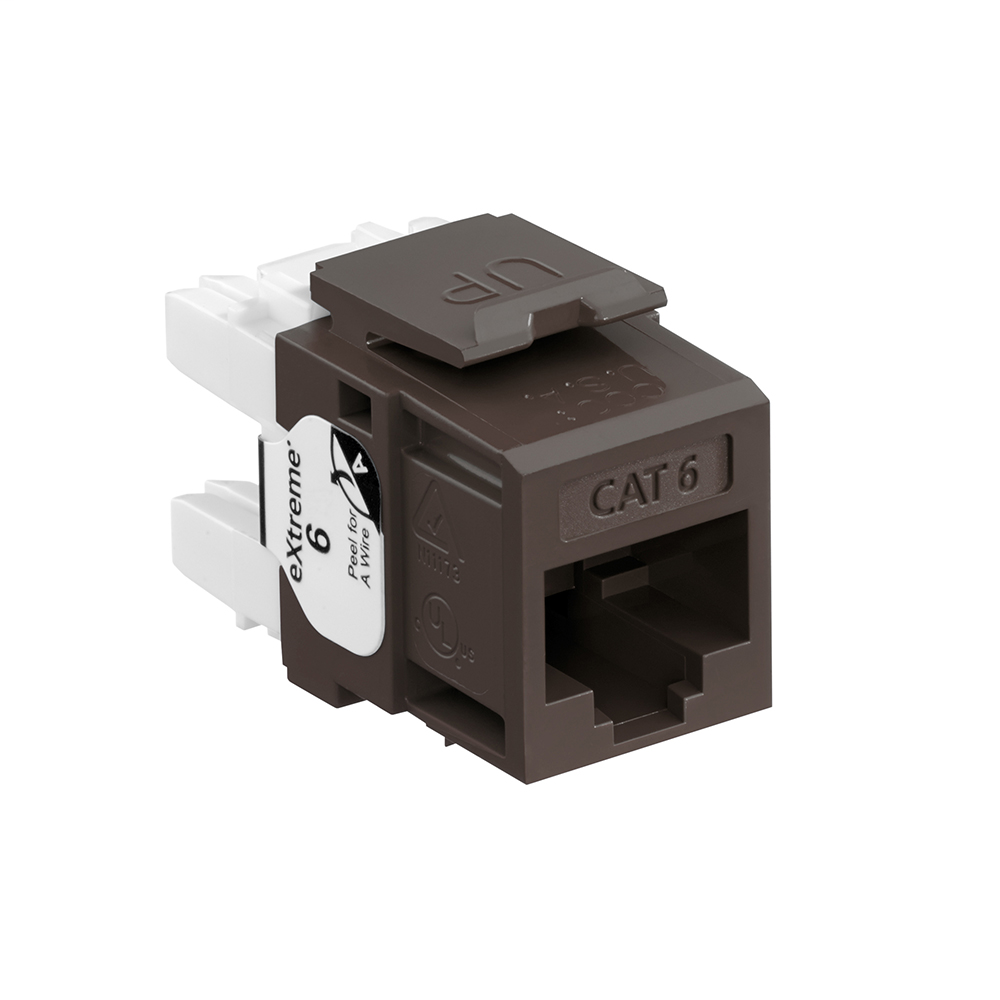

LEV 61110-RB6 JACK EXTREME C6 BN

Features

• Terminates 26 to 22-gauge solid conductors and 24 to 22-gauge stranded conductors
• Terminates 26-gauge stranded conductors up to 5 times
• Capable of multiple re-terminations
• Gas-tight IDC jacks prevent corrosion
• Dual-layer T568B/T568A wiring label simplifies punchdown
• Patented Retention Force Technology protects tines from damage and increases system longevity
• Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
• 180-degree configuration allows for rear termination
• Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization
• Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool

Specifications

Material Specifications

• Contact Surface Material: 50 microinches thick Gold-Plated
• Body Material: High-Impact Fire-Retardant Plastic
• Body Color: Brown
• Contact Base Material: Phosphor Bronze
• Contact Sub-Surface Material: 100 microinches thick Nickel-Plated

Mechanical Specifications

• Connector Feature: Channel/Component Rated
• Wiring Standard: T568A T568B
• Position / Conductor: 8P8C
• Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
• Product ID: Permanently laser-engraved
• Termination Type: 110 Punchdown
• Style Name: eXtreme

Performance Specifications

• Module Type: Category 6

Standards and Certifications

• UL: cULus Listed
• TIA/EIA: TIA-568-B
• FCC: Part 68 Compliant
• CSA: Certified
• NEC: Article 800 Compliant

Product Features

• Warranty: 1 Year Limited
• Contact Surface Material: 50 microinches thick Gold-Plated
• Connector Feature: Channel/Component Rated
• Body Color: Brown
• Shielding: UTP
• Flammability: Rated V-0 per UL 94
• Color: Brown
• Position / Conductor: 8P8C
• Brand: eXtreme
• Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
• Country Of Origin: United States
• Packaging: Single Pack 1/bag
• Module Type: Category 6
• Category Rating: Cat 6
• Module Style: Connector
• Termination Type: 110 Punchdown
• Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
• Contact Base Material: Phosphor Bronze
• Standards and Certifications: TIA/EIA cULus Listed
