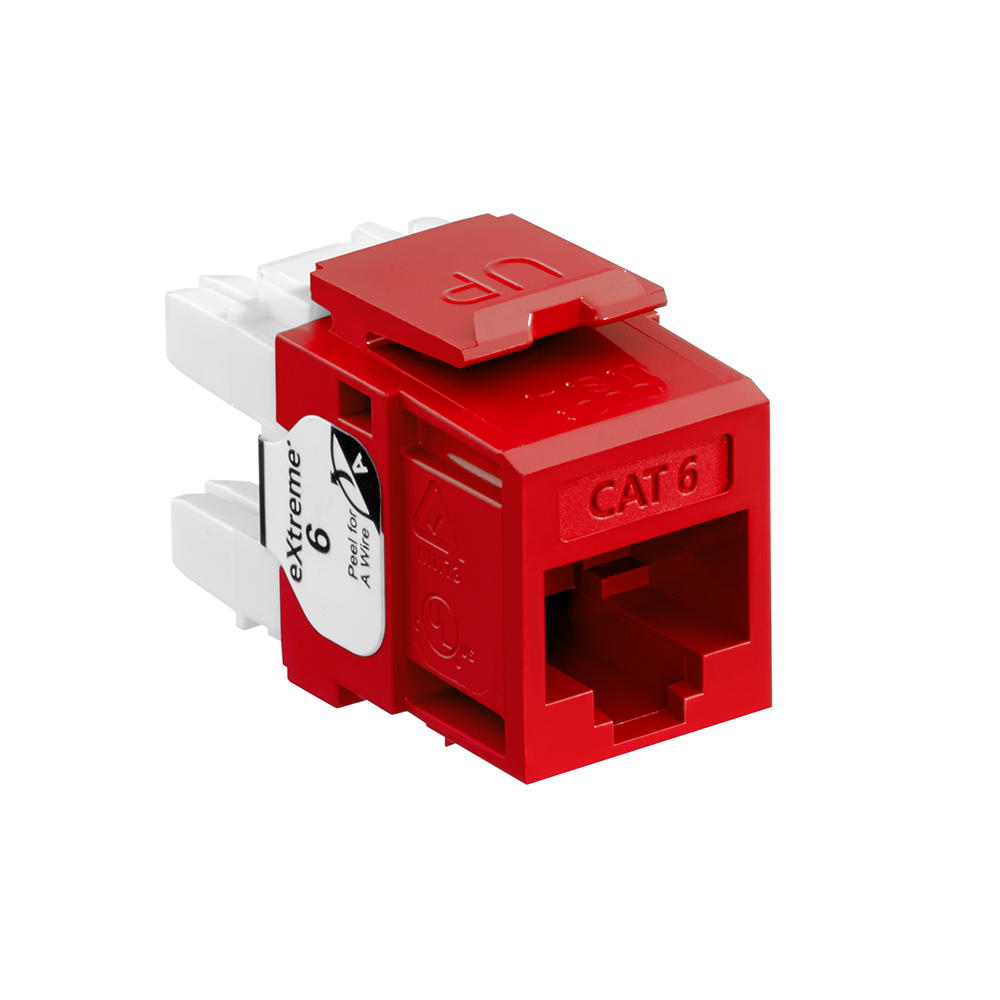

LEV 61110-RC6 JACK EXTREME C6 CR
$13.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 61110-RC6
North Coast Part # 543609

Features

  • Terminates 26 to 22-gauge solid conductors and 24 to 22-gauge stranded conductors
  • Terminates 26-gauge stranded conductors up to 5 times
  • Capable of multiple re-terminations
  • Gas-tight IDC jacks prevent corrosion
  • Dual-layer T568B/T568A wiring label simplifies punchdown
  • Patented Retention Force Technology protects tines from damage and increases system longevity
  • Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
  • 180-degree configuration allows for rear termination
  • Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization
  • Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool

Specifications

Material Specifications

  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Body Material: High-Impact Fire-Retardant Plastic
  • Body Color: Crimson Red
  • Contact Base Material: Phosphor Bronze
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated

Mechanical Specifications

  • Connector Feature: Channel/Component Rated
  • Wiring Standard: T568A T568B
  • Position / Conductor: 8P8C
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Product ID: Permanently laser-engraved
  • Termination Type: 110 Punchdown
  • Style Name: eXtreme

Performance Specifications

  • Module Type: Category 6

Standards and Certifications

  • UL: cULus Listed
  • TIA/EIA: TIA-568-B
  • FCC: Part 68 Compliant
  • CSA: Certified
  • NEC: Article 800 Compliant

Product Features

  • Warranty: 1 Year Limited
  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Connector Feature: Channel/Component Rated
  • Body Color: Crimson Red
  • Shielding: UTP
  • Flammability: Rated V-0 per UL 94
  • Color: Crimson
  • Position / Conductor: 8P8C
  • Brand: eXtreme
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Country Of Origin: United States
  • Packaging: Single Pack 1/bag
  • Module Type: Category 6
  • Category Rating: Cat 6
  • Module Style: Connector
  • Termination Type: 110 Punchdown
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
  • Contact Base Material: Phosphor Bronze
  • Standards and Certifications: TIA/EIA cULus Listed

videos

Categories

Overview

UPC 07847714469
GTiN 00078477144695
Warranty Length 1 yr
Size 0.89 H x 0.64 W x 1.21 D IN
Color Crimson Red
Type CAT 6+ Quickport Connector
Applications For Commercial Use
Mounting Type Wallplate/Panel
Country of Origin USA
Style EXtreme
Standard EIA,TIA,cULus Listed
Body Material High-Impact Fire-Retardant Plastic
Contact Type 8P8C
Pkg Qty 1
Family Brand Name Leviton
Flamability Class Rated V-0 Per UL 94
Contact Material High Quality Copper-based Alloy Plated With 50 Micro-inches Of Gold Over 100 Micro-inches Of Nickel
Environmental Conditions Flammability (Rated V-0 per UL94)
Category Type CAT 6
Sub Brand Extreme
Cable Type Category 6+
Blade Dimensions 0.64 in W x 1.21 in D x 0.89 in H
Number of Positions 8
