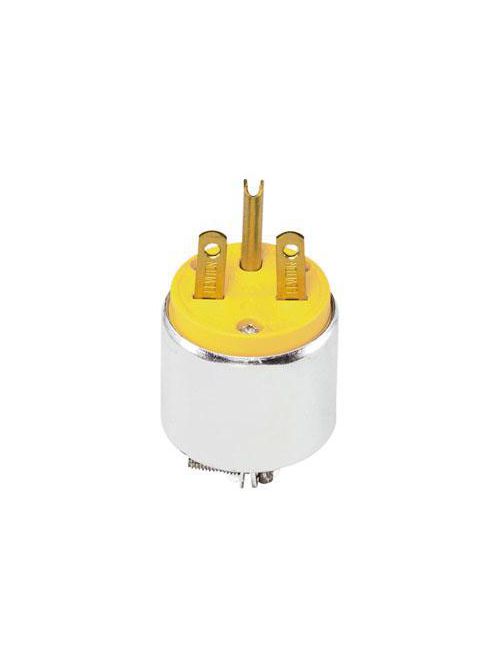

Leviton 615PA 15 Amp 250 Volt NEMA 6-15P 2-Pole 3 Wire Straight Blade Commercial Grade Armored Grounding Steel Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$10.93/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 615PA
North Coast Part # 877562

Specifications

Material Specifications

  • Color: Yellow
  • Blades/Contacts: Brass
  • Body Material: PVC / Steel
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13393
  • ANSI: C-73
  • NEMA: WD-6

Product Features

  • Color: Yellow
  • Country Of Origin: Mexico
  • NEMA: 6-15P

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .245 - .700
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-12 AWG

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Pole: 2
  • Voltage: 250 VAC
  • Grounding: Grounding

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

GTiN 00078477842416
Warranty Length 2 yr
Size 1.89 H x 1.55 Dia IN
Color Yellow
Operating Temperature -40 C
Voltage 250 Volt
Type Armoured
Material PVC
Applications Commercial, Residential Grade
Mounting Type Cable
Country of Origin Mexico
Wire Size 18-12 AWG
Standard ANSI C-73
Blade Type Brass
Body Material PVC,Steel
Screw Type Steel,Zinc-Plated
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 6-15P,WD-6
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Yes
Contact Material Brass
Amperage 15 Amp
Blade Dimensions 1.55 in dia x 1.89 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Product UPC 07847784241
