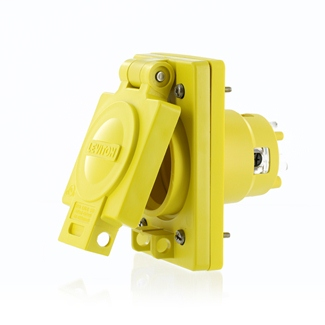

LEV 68W81 WG INLET WITH COVER

Specifications

Material Specifications

• Torsion Spring Mechanism: Stainless Steel
• Cover Gasket: Santoprene TPV
• Cover/Lid: Valox PBT
• Terminal Screws: Electroless Nickel-coated Brass
• Blades/Contacts, Terminal Clamps: Electroless Nickel-coated Brass
• Mounting & Assembly Screws: Stainless steel, non-magnetic
• Wiring Module Mounting Cup: Valox PBT
• Wiring Module: Nylon

Standards and Certifications

• ANSI: C-73
• UL: 498
• CSA: C22.2 No. 42
• NEMA: WD-6
• NOM: 057

Product Features

• Color: Yellow
• Device Type: Locking Inlet
• Brand: Wetguard
• Country Of Origin: United States
• NEMA: L21-30P

Mechanical Specifications

• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Product ID: Ratings and NEMA I.D. permanently marked on device
• Terminal Accom.: #12 AWG to #8 AWG

Electrical Specifications

• Amperage: 30 A
• Wire: 5
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Pole: 4
• Current Limiting: Full Rated Current
• Voltage: 120/208 VAC
• Grounding: Grounding
• Phase: 3-Phase WYE

Environmental Specifications

• Environment: Wet
• Flammability: Rated V-2 per UL 94 (wiring module)
• Operating Temperature: -40°C to 60°C
• Enclosure Rating: NEMA 4, 4X, 12 IEC IP66
